Edgeboard Connectors Overview

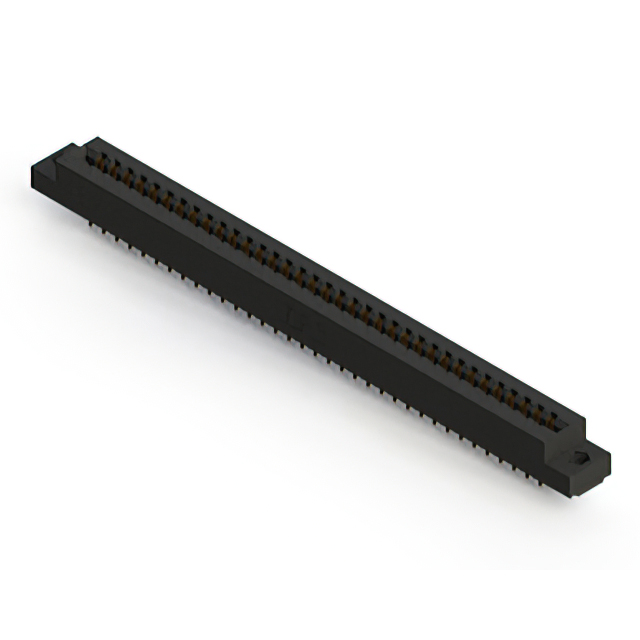

The EDAC Inc. 355-070-556-504 is a dual-edge female card edge connector from the 355 series, featuring 70 positions arranged in two rows of 35 contacts each. It utilizes a 0.156-inch (3.96mm) contact spacing and accepts printed circuit boards with thicknesses ranging from 0.054 to 0.070 inches (1.37mm to 1.78mm). The connector employs half-beam contact types with gold plating for reliable signal transmission. Designed for through-hole solder termination, it operates within a temperature range of -40°C to +105°C and features a black thermoplastic polyester insulator body.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration with half-beam contacts for secure board retention
• Gold-plated copper alloy terminals ensure low contact resistance and corrosion resistance
• Thermoplastic polyester insulator provides thermal stability and mechanical strength
• Through-hole solder termination supports standard PCB assembly processes

Edgeboard Connectors Applications

• Industrial control system interface modules
• Telecommunications equipment backplanes
• Test and measurement instrument cards
• Computing hardware expansion slots

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 355 Series Ordering Guide to confirm pin count, row configuration, and termination style. Ensure compatibility with target PCB thickness specifications before procurement. Cross-reference the component status to confirm current production availability and lead time requirements.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with 0.156-inch pitch is required for high-reliability applications. Consider the operating temperature range and insulation material properties for environmental suitability. Evaluate the mechanical mounting constraints and soldering process compatibility with existing manufacturing workflows.

Edgeboard Connectors Part Context

This part belongs to the EDAC 355 series of standard card edge connectors, designed for robust interconnection in demanding electronic environments. The series offers various position counts and termination options to accommodate diverse board design requirements while maintaining consistent electrical performance and mechanical durability across the product line.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 355 Series cross-reference documentation for verified substitute part numbers. Verify that alternative components match the critical parameters of contact spacing, row configuration, and board thickness acceptance before implementation.

Edgeboard Connectors FAQ

What is the acceptable printed circuit board thickness for this connector?

The connector accepts PC board thicknesses ranging from 0.054 inches to 0.070 inches (1.37mm to 1.78mm).

What type of contact termination does this model use?

It uses through-hole solder termination with half-beam contact types for secure connection.
