387-013-544-107

Edgeboard Connectors Overview

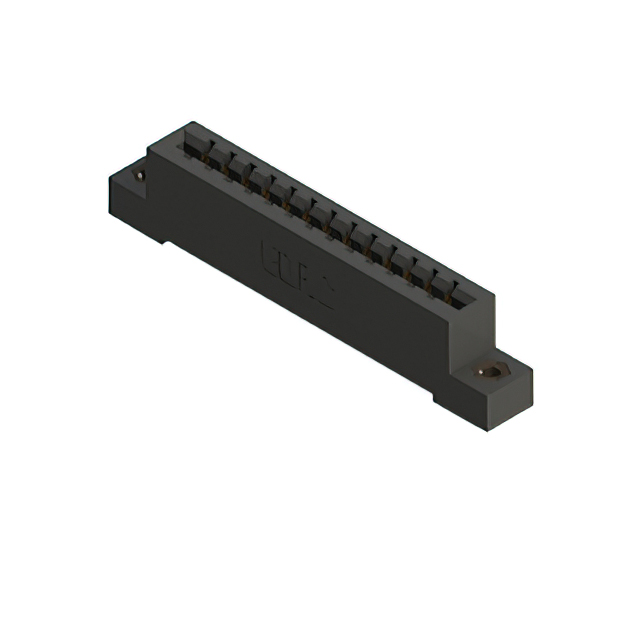

The EDAC Inc. 387-013-544-107 is a single-row card edge connector with 13 female positions and a 0.156-inch (3.96 mm) pitch. It features wire wrap termination, gold-plated contacts, and a black thermoplastic polyester housing. Designed for through-hole mounting, it supports board thicknesses of 0.054 to 0.070 inches. The connector operates within a temperature range of -40°C to +105°C and carries UL 94V-0 flammability ratings.

Edgeboard Connectors Feature Summary

• Single-edge female contact configuration for non-specified card applications
• Wire wrap termination method ensures secure lead attachment
• Gold-plated contact surfaces provide reliable signal transmission
• Thermoplastic polyester insulation offers thermal stability

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Consumer electronic circuit boards
• Medical device internal connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC 337/387 Series Ordering Guide to confirm terminal plating and housing color specifications. Ensure compatibility with target PCB thickness limits before procurement. Confirm RoHS compliance status via current manufacturer documentation. Validate that the wire wrap termination style matches assembly requirements. Cross-reference part numbers to avoid confusion with similar series variants.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 13-position interface with wire wrap termination is required. The 0.156-inch pitch accommodates standard board layouts. Verify that the operating temperature range meets environmental demands. Consider the through-hole mounting profile for mechanical stability. Ensure the female contact type aligns with the mating card edge design.

Edgeboard Connectors Part Context

This component belongs to the EDAC 387 Series, designed for high-reliability card edge applications. The series utilizes copper alloy contacts with gold plating for durability. The 387 line emphasizes robust construction for industrial and commercial environments. This specific model represents a standard configuration within the broader product family.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 337/387 Series Ordering Guide for direct substitutes. Verify identical pitch, row count, and termination style. Match housing material and flange configurations if present. Ensure electrical ratings remain consistent during substitution.
