Edgeboard Connectors Overview

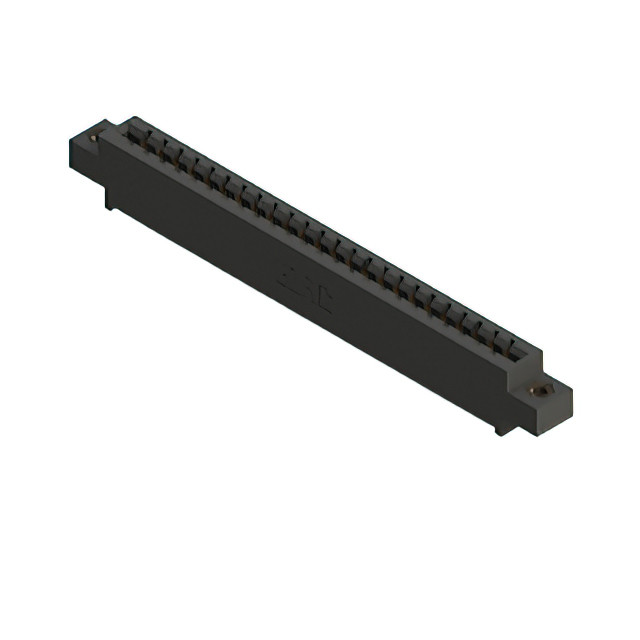

The EDAC Inc. 387-024-544-607 is a standard card edge connector from the 387 Series, designed for single-row through-hole mounting. It features 24 female positions with a 0.156-inch (3.96 mm) pitch and gold-plated contacts. The unit utilizes wire wrap termination and includes a black thermoplastic polyester insulator. It supports PCB thicknesses of 0.054 to 0.070 inches and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Single-row female configuration with 24 contact positions
• Gold-plated copper alloy contacts for reliable signal transmission
• Wire wrap termination method for secure board connection
• Thermoplastic polyester housing rated for high-temperature environments

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules
• General-purpose circuit board expansion slots

Edgeboard Connectors Procurement Notes

Verify that the specific ordering suffix matches the required termination style and flange characteristics. Confirm compliance with RoHS3 standards and ensure the package quantity aligns with production requirements. Cross-reference the manufacturer drawing for dimensional accuracy before finalizing procurement specifications.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 24-position interface is required with wire wrap termination capabilities. Ensure the target PCB thickness falls within the supported range of 0.054 to 0.070 inches. Consider the operating temperature range and material compatibility with adjacent components during mechanical design integration.

Edgeboard Connectors Part Context

This part belongs to the EDAC 387 Series, which provides versatile card edge solutions. The series offers various mounting options and contact configurations. This specific model emphasizes durability and high-temperature performance using thermoplastic polyester insulation and gold-plated contacts for long-term reliability in demanding applications.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include 387-024-541-612 and 387-024-544-112. Verify that alternative part numbers match the exact pin count, pitch, and termination type to ensure mechanical and electrical compatibility without redesigning the host assembly.
