392-012-520-203

Edgeboard Connectors Overview

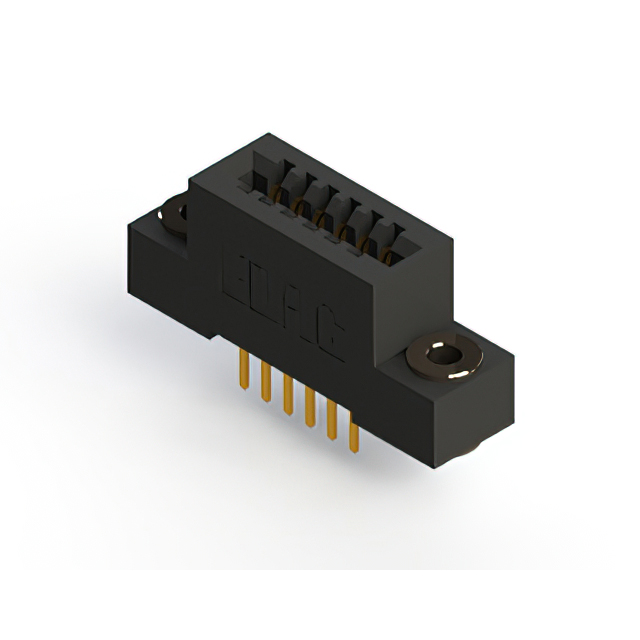

The EDAC Inc. 392-012-520-203 is a standard card edge connector from the 392 series, designed for reliable signal transmission in electronic assemblies. It features a dual female configuration with 12 positions arranged in two rows. The connector utilizes a 0.100-inch (2.54mm) contact spacing and a 0.200-inch (5.08mm) row spacing to accommodate printed circuit boards. Constructed with copper alloy contacts that are gold-plated for enhanced conductivity and corrosion resistance, it ensures stable electrical performance. The housing is made of black thermoplastic polyester, providing durability and insulation. Designed for through-hole termination, this component supports vertical panel mounting styles.

Edgeboard Connectors Feature Summary

• Dual edge female configuration with 12 positions for robust board-to-board connectivity
• Gold-plated copper alloy contacts ensure high conductivity and long-term reliability
• Black thermoplastic polyester insulator body provides structural integrity and electrical isolation
• Vertical panel mount design facilitates secure installation in chassis applications

Edgeboard Connectors Applications

• Industrial control systems requiring durable interconnects
• Telecommunications equipment infrastructure
• Automotive electronics modules
• Medical device instrumentation
• Aerospace and defense avionics

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count, termination style, and plating specifications. Ensure compatibility with the target PCB thickness and mounting requirements before procurement. Cross-reference the part number with authorized distributors to confirm authenticity and traceability. Check for any recent design changes or obsolescence notices from EDAC Inc. prior to finalizing purchase orders.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row, 12-position interface is required with 0.100-inch spacing. It is suitable for applications needing vertical panel mounting and through-hole soldering. Consider the gold plating for environments where corrosion resistance is critical. Evaluate the thermoplastic polyester housing for thermal stability within the specified operating temperature range. Ensure the mechanical fit aligns with the enclosure design constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 392 series, which specializes in standard card edge connectors. The series offers various configurations to meet diverse electronic interconnection needs. EDAC Inc., established in 1966, focuses on high-quality connector solutions for global markets. The 392 series is known for its reliability in demanding environments, serving industries such as medical, agricultural, and industrial automation. This specific model represents a common configuration within that broader product line.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC cross-reference guide for verified substitute part numbers. Ensure any replacement matches the 12-position dual-row layout and 0.100-inch spacing. Verify that alternative components support the same vertical panel mount and through-hole termination methods. Confirm material compatibility and environmental ratings before substitution.
