395-030-524-507

Edgeboard Connectors Overview

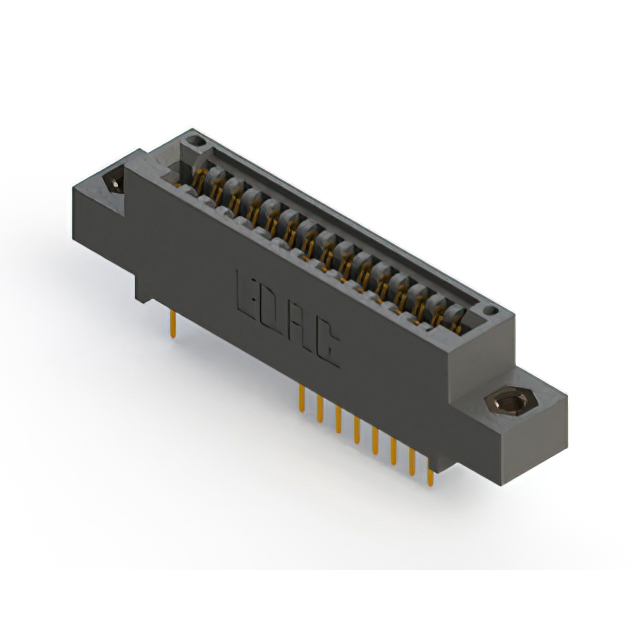

The EDAC Inc. 395-030-524-507 is a single-row card edge connector featuring 30 positions with a 0.100-inch (2.54mm) pitch. Designed for through-hole mounting, it utilizes solder termination and copper alloy contacts finished with 10.0µin (0.25µm) gold plating. The housing is constructed from polyester thermoplastic in black, supporting board thicknesses of 1.57mm. It includes top mount openings and M3 threaded inserts for flange features, operating within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Single-row female contact configuration with cantilever spring-type terminals
• Through-hole installation with solder tail termination method
• Flange feature incorporating top mount openings and M3 threaded inserts
• Gold-plated copper alloy contacts ensuring reliable signal transmission

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Consumer electronics module connections
• Automotive electronic circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct termination style and flange configuration. Confirm that the selected variant matches the required PCB board thickness tolerance and mounting hole specifications. Cross-reference the RoHS compliance status with current regulatory requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row, vertical card edge interface is required for rigid PCB applications. Ensure the design accommodates the specified 0.100-inch pitch and 30-position count. Verify that the thermal environment remains within the -40°C to 105°C operational range and that the mounting hardware supports the included M3 threaded insert features.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 Series, a line of standard card edge connectors designed for high-reliability interconnects. The series offers various row counts, termination styles, and flange options to accommodate diverse board layout requirements. The 395-030-524-507 specifically addresses needs for single-row, solder-tail connections with integrated mounting solutions.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 395 series variants with matching 30-position counts and single-row configurations. Verify compatibility regarding pitch, termination type, and flange dimensions before substitution. Alternative manufacturers may offer similar specs but require rigorous validation of mechanical fit and electrical performance.
