Edgeboard Connectors Overview

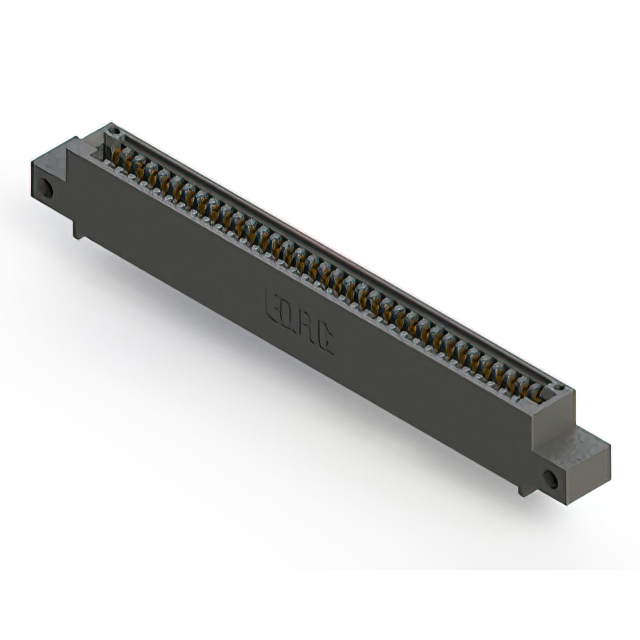

The EDAC Inc. 395-035-521-412 is a single-sided card edge connector designed for through-hole mounting with wire-wrap termination. It features 35 positions with a 0.100-inch (2.54mm) pitch and utilizes cantilever contacts made of copper alloy, finished with gold plating. The connector accommodates board thicknesses between 0.054 and 0.070 inches and operates within a temperature range of -40°C to 105°C. Constructed from thermoplastic polyester insulation, it includes top-mounting flanges with M3 threaded inserts.

Edgeboard Connectors Feature Summary

• Single-sided female contact configuration with cantilever design for reliable card insertion
• Wire-wrap termination method ensures secure electrical connections on printed circuit boards
• Thermoplastic polyester insulation provides structural integrity across specified operating temperatures
• Top-mounting flanges equipped with M3 threaded inserts facilitate stable mechanical installation

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnect solutions
• Telecommunications equipment utilizing standard card edge interfaces
• Automotive electronics applications demanding high reliability
• Test and measurement instrumentation hardware
• General-purpose electronic assemblies needing single-row connectivity

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffix codes to ensure correct termination style and mounting features. Confirm RoHS3 compliance status matches project requirements. Check manufacturer datasheets for updated environmental classifications and packaging details before ordering. Ensure compatibility with target PCB thickness specifications during procurement planning.

Edgeboard Connectors Selection Notes

Select this component when single-sided connectivity with wire-wrap termination is required. Verify that the 0.100-inch pitch aligns with existing board layout constraints. Confirm that the cantilever contact type suits the mating card insertion forces. Evaluate thermal performance needs against the -40°C to 105°C operational range. Ensure mechanical mounting options match available chassis or panel configurations.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 395 series, which offers various position counts and termination styles. The series supports both single and double-sided configurations with different mounting options. Components in this family share common dimensional standards while varying in contact count and specific interface features to suit diverse electronic assembly needs.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 395 series variants for alternative position counts. Verify mechanical dimensions and pinout compatibility before substituting with connectors from different manufacturers. Ensure that any replacement maintains the same termination style and mounting characteristics.
