395-053-540-488

Edgeboard Connectors Overview

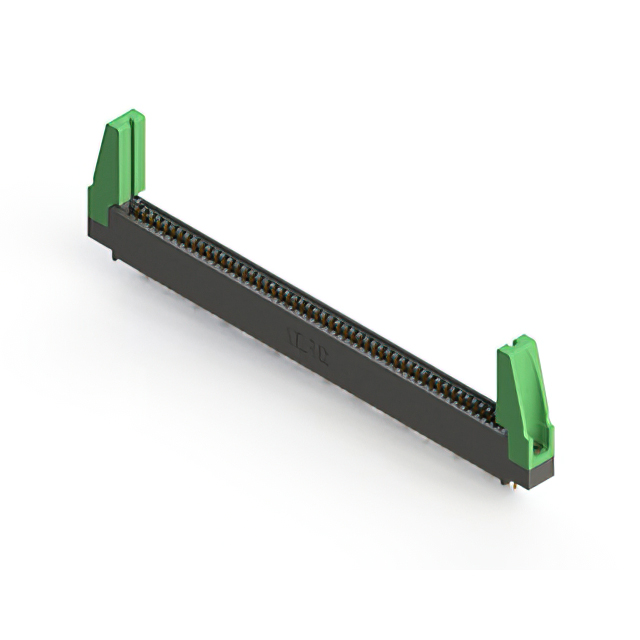

The EDAC Inc. 395-053-540-488 is a standard card edge connector from the 345/395 series, designed for single-row applications. It features 53 positions with a contact spacing of 0.100 inches (2.54mm) and a row spacing of 0.200 inches (5.08mm). The connector supports printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). It utilizes wire-wrap tail pins for termination and includes a black insulator body. The unit operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Single-row configuration with 53 positions
• Wire-wrap tail pin termination style
• Compatible with 0.062-inch nominal PCB thickness
• Black insulator housing

Edgeboard Connectors Applications

• Standard card edge interconnections
• Industrial control systems
• Telecommunications equipment
• General electronic assemblies requiring wire-wrap termination

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against manufacturer documentation to confirm exact plating and termination details. Ensure compatibility with target PCB thickness and mounting rail dimensions. Cross-reference official datasheets for environmental ratings and mechanical durability specifications before finalizing component selection.

Edgeboard Connectors Selection Notes

Select this connector when a single-row interface with wire-wrap termination is required. Confirm that the application environment falls within the specified operating temperature range. Verify that the mating card edge dimensions align with the 0.100-inch contact spacing and 0.200-inch row spacing requirements.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series, which offers various configurations for card edge applications. The series provides options for different row counts, contact spacings, and termination styles. This specific model represents a mid-range position count variant suitable for dense board-to-board or backplane connections.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other EDAC models within the 345/395 series sharing identical mechanical dimensions and pin counts. Verify equivalent electrical ratings and termination methods before substitution.
