395-061-524-602

Edgeboard Connectors Overview

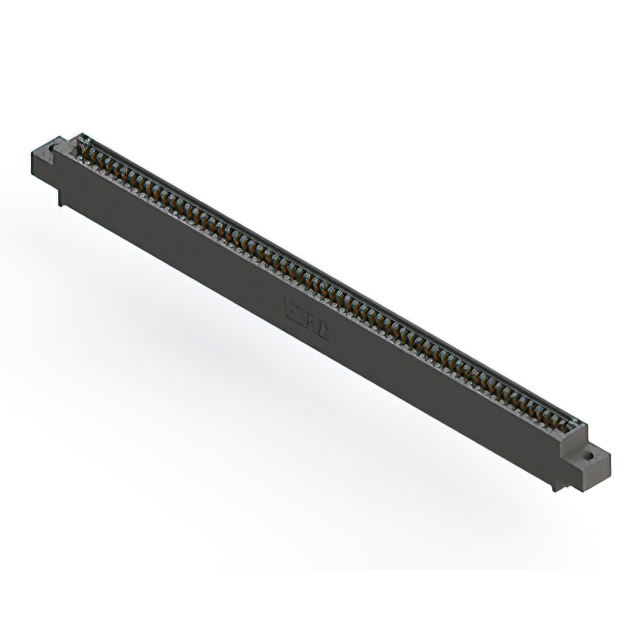

The EDAC Inc. 395-061-524-602 is a single-edge female card edge connector with 61 positions and a 0.100-inch (2.54mm) pitch. It features gold-plated contacts, a black thermoplastic polyester insulator, and vertical through-hole termination. Designed for PCB thicknesses of 1.57mm, it includes top-mount flanges with M3 threaded inserts for secure installation. The component operates within a temperature range of -40°C to 105°C and complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

• Single-edge female contact configuration for standard card edge applications
• Gold-plated cantilever spring contacts for reliable signal transmission
• Integrated flange design with M3 threaded inserts for panel mounting stability

Edgeboard Connectors Applications

• Industrial control system interface connections
• Telecommunications equipment backplane interconnects
• Automotive electronic module integration

Edgeboard Connectors Procurement Notes

Verify the specific suffix '602' against official EDAC documentation to confirm the exact color code and flange configuration. Ensure compatibility with the target PCB thickness of 1.57mm before procurement. Confirm that the required mounting hardware aligns with the M3 threaded insert specifications provided in the datasheet.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 61-position connection is required with a standard 2.54mm spacing. The vertical orientation and flanged design make it suitable for applications needing robust mechanical retention. Consider the operating temperature range and material composition to ensure environmental suitability for the intended deployment scenario.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and termination options. The 395-061 variant specifically provides a 61-position capacity, balancing density and space requirements for mid-range circuit board interfaces in commercial and industrial electronics.

Edgeboard Connectors Replacement Considerations

Cross-reference with EDAC part numbers sharing the same 61-position count and 0.100-inch pitch. Verify that any substitute matches the vertical mounting angle, flange type, and contact plating specifications to maintain mechanical and electrical compatibility.
