395-070-525-607

Edgeboard Connectors Overview

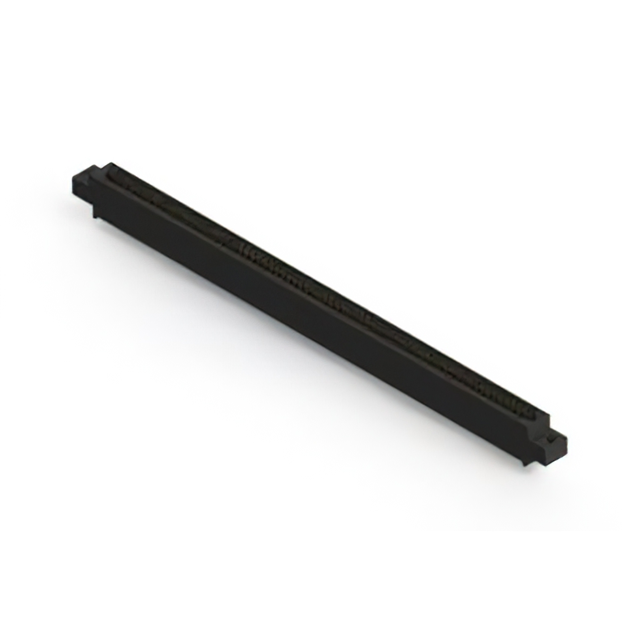

The EDAC Inc. 395-070-525-607 is a single-edge female card edge connector with 70 positions and a 0.100-inch (2.54mm) pitch. It features gold-plated contacts, a black insulator, and is designed for through-hole mounting. The connector supports board thicknesses of 1.57mm and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Single-edge female contact configuration for standard card edge applications
• Gold-plated terminal surfaces ensure reliable signal transmission
• Thermoplastic polyester insulation provides structural stability

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Consumer electronics modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with target PCB hole sizes and mating card dimensions before procurement. Cross-reference RoHS compliance status with current manufacturer declarations to meet regulatory requirements.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with 70 pins is required. Verify that the mating card thickness aligns with the specified 1.57mm requirement. Confirm that the through-hole termination method matches the target PCB assembly process capabilities.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various pin counts and configurations for diverse interconnect needs. The 395-070 variant specifically addresses high-density single-edge connection requirements in compact electronic assemblies.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified equivalents. Generic cross-references may not match critical dimensional or electrical tolerances.
