Edgeboard Connectors Overview

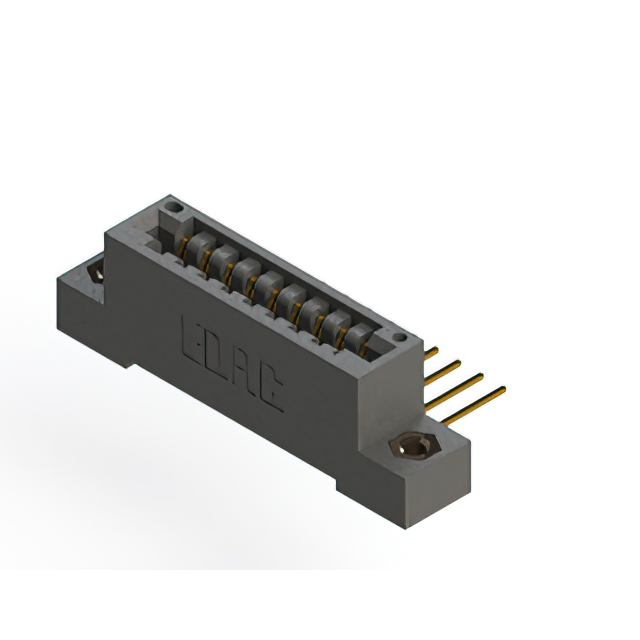

The EDAC Inc. 396-009-559-108 is a standard card edge connector from the 396 series, designed for vertical board-to-board or board-to-cable connections. It features a single row of nine positions with a 3.175 mm (0.125 inch) pitch. The connector utilizes gold-plated contacts to ensure reliable signal transmission and low contact resistance. Constructed with thermoplastic polyester housing, it supports a maximum operating temperature of +105°C and offers an insulation resistance of 5 GOhms. The unit is rated for a current capacity of 3 A and complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

• Vertical mounting orientation for secure PCB integration
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• Thermoplastic polyester housing providing thermal stability up to +105°C
• Single-edge female configuration with nine contact positions

Edgeboard Connectors Applications

• Medical interconnect solutions requiring reliable signal paths
• Industrial control systems utilizing card edge interfaces
• Communication equipment needing high-density vertical connectors
• Consumer electronics with standard card edge requirements

Edgeboard Connectors Procurement Notes

Verify RoHS3 compliance status and specific packaging details directly with authorized distributors. Confirm that the ordering suffix corresponds exactly to the required pin count and plating specifications. Ensure compatibility with the target PCB thickness and mating card dimensions before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a vertical, single-row card edge interface is required. The 3.175 mm pitch and nine-position layout suit applications with moderate I/O density. Verify that the 3 A current rating and +105°C thermal limit meet the system's operational demands. Consider the gold plating for environments where oxidation resistance is critical.

Edgeboard Connectors Part Context

This part belongs to the EDAC 396 series of standard card edge connectors. The series offers various position counts and configurations for diverse electronic applications. EDAC provides comprehensive interconnect solutions across medical, industrial, and consumer sectors, emphasizing durability and precision in connector design.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 396 series variants such as 396-009-559-112 for potential alternative configurations. Verify mechanical dimensions and electrical ratings against similar EDAC models to ensure functional equivalence without redesigning the host PCB footprint.

Edgeboard Connectors FAQ

What is the contact material plating for this connector?

The contacts are gold-plated to ensure reliable performance and resistance to environmental factors.

What is the maximum operating temperature rating?

The connector is rated for a maximum operating temperature of +105°C.
