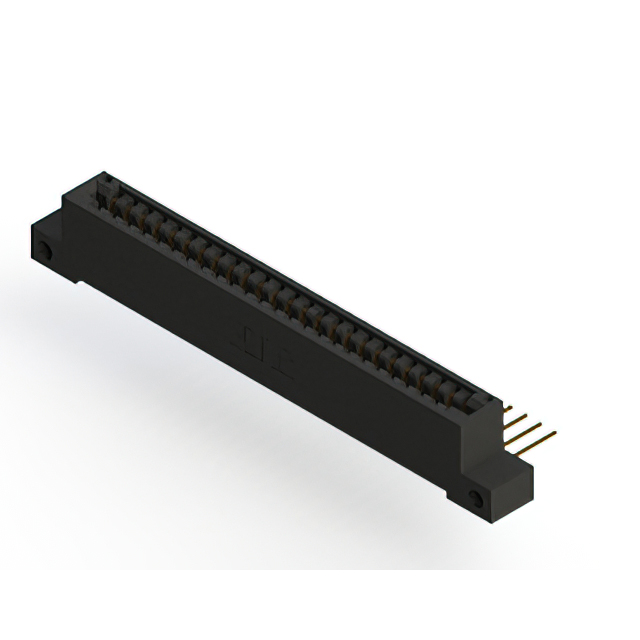

396-025-558-112

$10.46

Description：CONN EDGE SGL FMALE 25POS 0.125
Series：396
Mfr：EDAC Inc.
Package：Box

SKU:7138ecd84899 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

396-025-558-112 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 25POS 0.125. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 396-025-558-112

Description：CONN EDGE SGL FMALE 25POS 0.125
Series：396
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：25
Number of Positions：25
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.125" (3.18mm)
Read Out：Single
Features：-
Mounting Type：Through Hole, Right Angle
Termination：Solder, Wire Wrap
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 396-025-558-112

396-025-558-112

Edgeboard Connectors Overview

The EDAC Inc. 396-025-558-112 is a single-row card edge connector featuring 25 positions with a 0.125-inch (3.175 mm) pitch. Designed for vertical through-hole mounting, it utilizes gold-plated cantilever spring contacts to ensure reliable signal transmission. The connector accommodates PCB thicknesses ranging from 0.054 inches to 0.070 inches (1.37 mm to 1.78 mm). Constructed with a black thermoplastic polyester insulator, it supports an operating temperature range of -40°C to 105°C and complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

Single-sided female contact configuration for straightforward board integration
Gold-plated cantilever spring contacts provide durable electrical connection
Vertical through-hole termination ensures secure PCB mounting
Thermoplastic polyester insulator offers thermal stability within specified ranges

Edgeboard Connectors Applications

Industrial control system interconnections
Telecommunications equipment backplanes
Consumer electronics module interfaces
Automotive electronic circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and insulation material properties. Ensure the target PCB design matches the required 0.125-inch pitch and compatible board thickness specifications. Confirm RoHS3 compliance requirements align with project environmental standards before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with high mechanical durability is required. The cantilever contact design simplifies insertion and extraction cycles compared to other contact types. Verify that the vertical mounting orientation fits the enclosure constraints and that the through-hole soldering process is compatible with the assembly line capabilities.

Edgeboard Connectors Part Context

This part belongs to the EDAC 396 series, which specializes in standard card edge connectors for various industrial applications. The series offers multiple position counts and row configurations to support diverse connectivity needs. The 396-025 variant specifically addresses requirements for moderate density single-sided connections in compact electronic assemblies.
