396-030-559-258

Edgeboard Connectors Overview

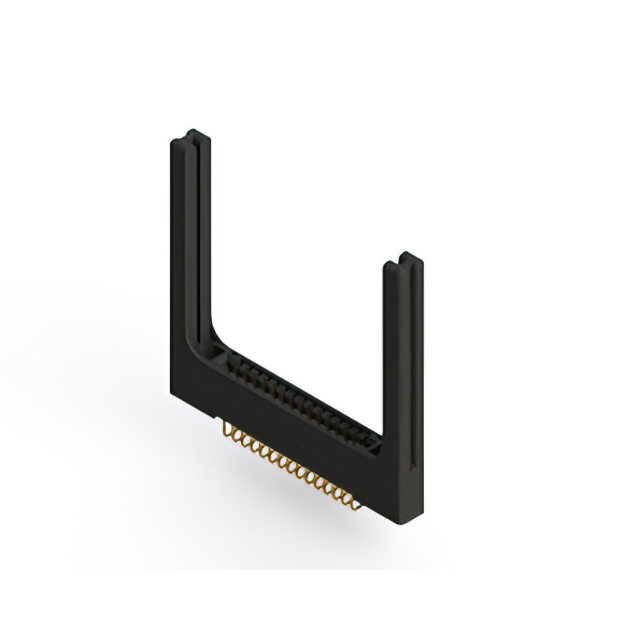

The EDAC Inc. 396-030-559-258 is a standard card edge connector from the 396 series, designed for reliable signal transmission in electronic assemblies. This component features 30 positions arranged in a dual-row configuration with a 0.125-inch (3.175 mm) pitch. It utilizes female contacts with gold plating to ensure low contact resistance and durability. The connector supports a board thickness of 1.57 mm and employs a right-angle vertical mounting orientation. Solder terminals provide secure electrical connections to the PCB.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for robust mating stability
• Gold-plated contacts to enhance conductivity and corrosion resistance
• Right-angle vertical mounting design for space-efficient PCB integration
• Integrated guide set for precise alignment during insertion

Edgeboard Connectors Applications

• Medical interconnect solutions requiring durable connections
• Agricultural technology systems operating in harsh environments
• Industrial control boards utilizing standard card edge interfaces
• General-purpose electronic assemblies needing reliable signal paths

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, row configuration, and termination style. Ensure the target PCB thickness aligns with the specified 1.57 mm requirement for proper mechanical fit. Confirm that the right-angle mounting orientation matches the assembly layout constraints before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a dual-row, 30-position interface is required with a 0.125-inch pitch. The right-angle form factor suits applications where vertical clearance is limited but horizontal board space is available. Gold plating is essential for environments demanding high cycle life or corrosion protection. Verify compatibility with existing guide rails if precision alignment is critical for the assembly process.

Edgeboard Connectors Part Context

This component belongs to the EDAC 396 series, a line of standard card edge connectors known for versatility across various industries. The series offers multiple position counts and configurations to support diverse electronic design needs. As a standard product, it provides a balance of performance and availability for general engineering applications requiring dependable board-to-board or board-to-backplane connectivity.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include part numbers such as 396-030-559-158, which shares similar physical dimensions and contact arrangements. Cross-reference official datasheets to verify identical pitch, row count, and terminal type before swapping components to ensure mechanical and electrical compatibility.
