396-094-558-878

Edgeboard Connectors Overview

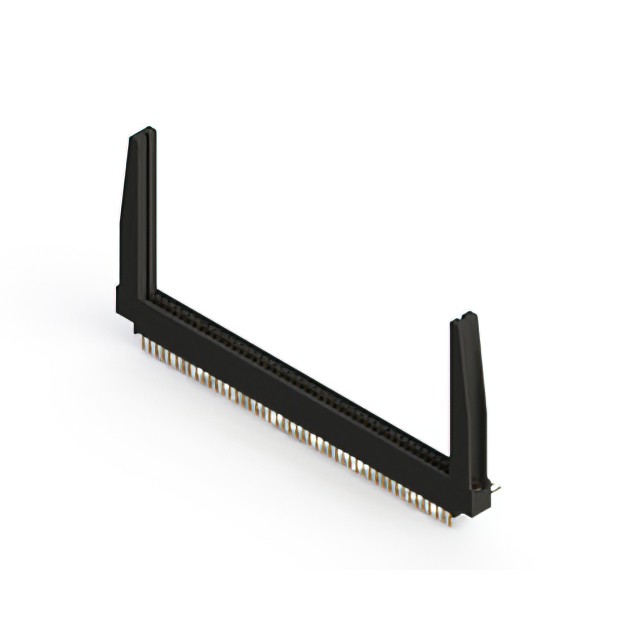

The EDAC Inc. 396-094-558-878 is a standard card edge connector designed for vertical panel mount applications. It features a dual female configuration with 94 positions arranged in two rows of 47 contacts each. The connector utilizes a 3.175 mm (0.125 inch) pitch and accommodates board thicknesses ranging from 1.37 mm to 1.78 mm. Contacts are constructed from copper alloy and finished with gold plating to ensure reliable signal transmission. The housing is made of black thermoplastic polyester, providing durability and insulation.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure mating with card edge boards
• Vertical mounting orientation suitable for panel installation
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Thermoplastic polyester insulator for structural stability and thermal performance

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment needing reliable signal pathways
• Agricultural technology hardware exposed to harsh environments
• General-purpose electronic assemblies utilizing standard card edge interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact pin count, contact finish, and flange specifications. Ensure compatibility with target PCB thickness ranges before integration. Confirm RoHS compliance status through official documentation as regulatory requirements may vary by production batch or region. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this component when a high-density vertical connection is required for double-sided card edge boards. The 3.175 mm pitch allows for moderate trace spacing while maintaining a compact form factor. Consider the vertical mounting style if space constraints prevent horizontal insertion. Verify that the gold plating meets the application's wear and oxidation resistance requirements compared to tin or nickel alternatives.

Edgeboard Connectors Part Context

This part belongs to the EDAC 396 series, which specializes in standard card edge connectors for various industrial and commercial sectors. The series offers a wide range of position counts and mounting styles to support diverse design needs. EDAC provides comprehensive engineering support and 3D models for these connectors, facilitating easier integration into complex electronic systems across multiple industries.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts with identical pitch and position counts but different mounting angles or flange types. Verify mechanical dimensions and electrical ratings before substitution. Consult the manufacturer's cross-reference guide for approved alternative part numbers that maintain functional equivalence.
