4-1393806-8

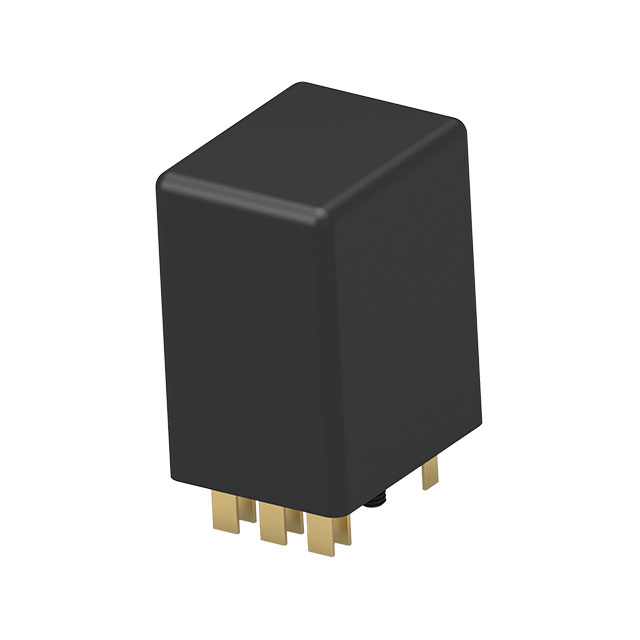

4-1393806-8 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE DPST 5A 72V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for 4-1393806-8

• Description：RELAY GEN PURPOSE DPST 5A 72V
• Series：V23154, AXICOM
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Bulk
• Mounting Type：Socketable
• Coil Voltage：72VDC
• Contact Form：DPST-NO (2 Form A)
• Contact Rating (Current)：5:00 AM
• Switching Voltage：125VAC, 150VDC - Max
• Load - Max Switching：625VA, 750W
• Coil Current：16.7 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：Plug In
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：36.2 VDC
• Must Release Voltage：-
• Operating Temperature：-40°C ~ 70°C
• Contact Material：Silver (Ag)
• Approval Agency：-
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：7.5 ms
• Release Time：3 ms

Power Relays, Over 2 Amps datasheet and documents for 4-1393806-8
