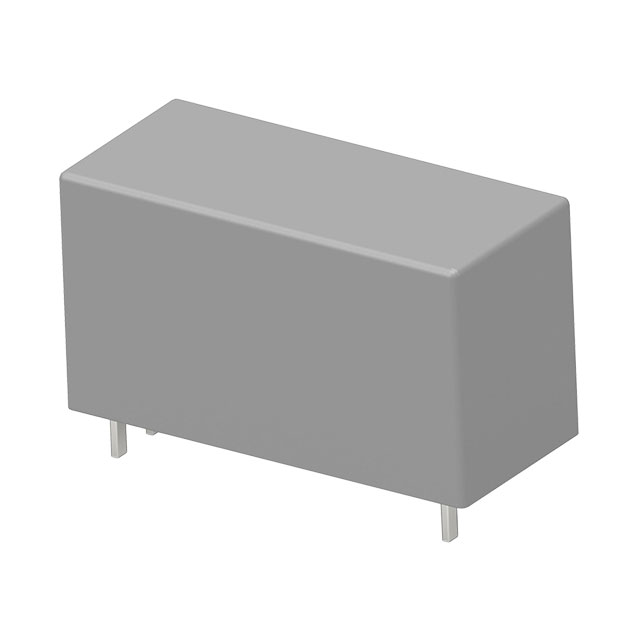

4-1415382-1

4-1415382-1 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE SPST 12A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for 4-1415382-1

• Description：RELAY GEN PURPOSE SPST 12A 24V
• Series：RT1, SCHRACK
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Tube,Tube
• Mounting Type：Through Hole
• Coil Voltage：24VDC
• Contact Form：SPST-NO (1 Form A)
• Contact Rating (Current)：12:00 AM
• Switching Voltage：400VAC - Max
• Load - Max Switching：4800VA
• Coil Current：27.1 mA
• Coil Type：Latching, Dual Coil
• Features：-
• Termination Style：PC Pin
• Seal Rating：Sealed - Flux Protection
• Coil Insulation：Class F
• Must Operate Voltage：16.8 VDC
• Must Release Voltage：13.2 VDC
• Operating Temperature：-40°C ~ 85°C
• Contact Material：Silver Nickel (AgNi)
• Approval Agency：CQC, CSA, cURus, VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：10 ms
• Release Time：10 ms

Power Relays, Over 2 Amps datasheet and documents for 4-1415382-1
