Product Detailed Parameters

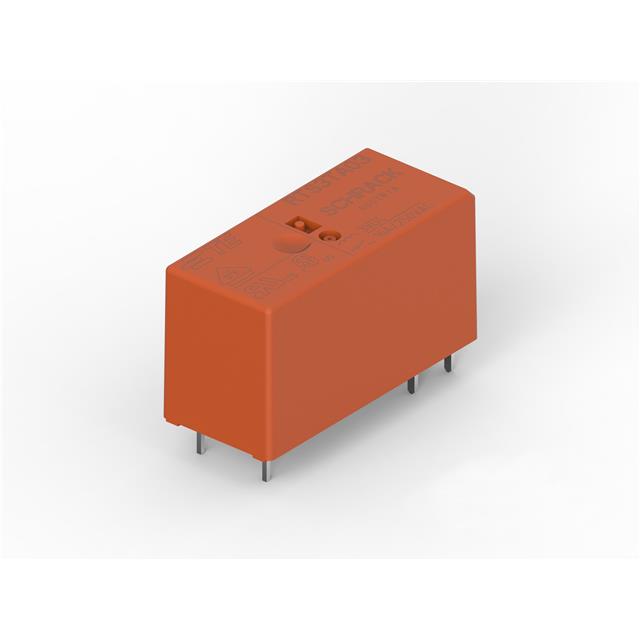

- Description：RELAY GEN PURP
- Series：RT, SCHRACK
- Mfr：TE Connectivity Potter & Brumfield Relays
- Package：Bulk
- Mounting Type：Through Hole
- Coil Voltage：3VDC
- Contact Form：SPST-NO (1 Form A)
- Contact Rating (Current)：16 A
- Switching Voltage：400VAC - Max
- Load - Max Switching：6400VA
- Coil Current：142.9 mA
- Coil Type：Latching, Single Coil
- Features：-
- Termination Style：PC Pin
- Seal Rating：Sealed - Flux Protection
- Coil Insulation：Class F
- Must Operate Voltage：2.1 VDC
- Must Release Voltage：1.7 VDC
- Operating Temperature：-10°C ~ 85°C
- Contact Material：Silver Tin Oxide (AgSnO), Tungsten (W)
- Approval Agency：CQC, CSA, cURus, VDE
- Relay Type：General Purpose
- Grade：-
- Qualification：-
- Operate Time：10 ms
- Release Time：5 ms
