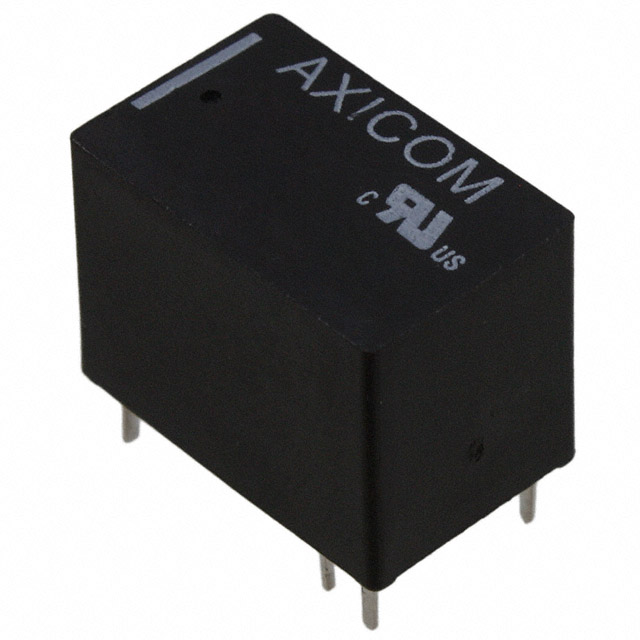

4-1419172-4

4-1419172-4 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE SPDT 3A 12V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for 4-1419172-4

• Description：RELAY GEN PURPOSE SPDT 3A 12V
• Series：V23101, AXICOM
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Tube
• Mounting Type：Through Hole
• Coil Voltage：12VDC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：3:00 AM
• Switching Voltage：125VAC, 120VDC - Max
• Load - Max Switching：375VA, 360W
• Coil Current：37.5 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：8.4 VDC
• Must Release Voltage：1.2 VDC
• Operating Temperature：-40°C ~ 85°C
• Contact Material：Silver Nickel (AgNi)
• Approval Agency：cURus
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：7 ms
• Release Time：5 ms

Power Relays, Over 2 Amps datasheet and documents for 4-1419172-4
