40.31.9.024.0000

Power Relays, Over 2 Amps Overview

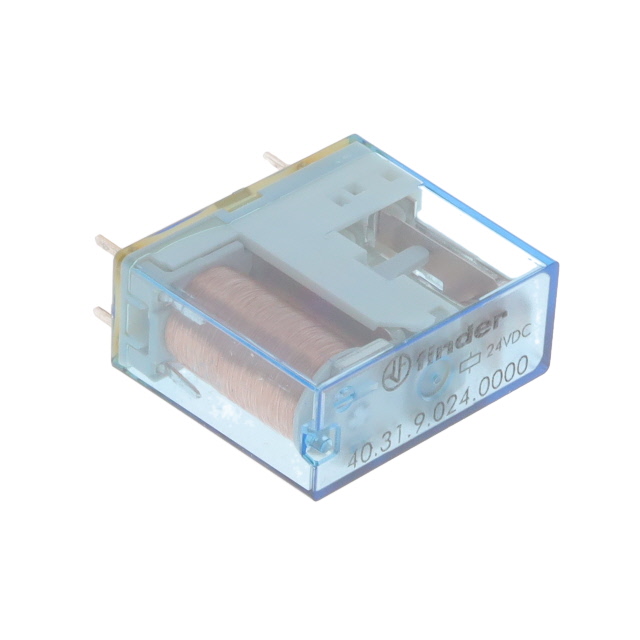

The Finder 40.31.9.024.0000 is a miniature power relay from the 40 series, designed for PCB mounting or plug-in socket installation. It features a single pole double throw (SPDT) contact configuration with one Form C contact. The unit operates on a 24VDC coil voltage and exhibits a coil resistance of 900Ω. It supports a maximum switched voltage of 400VAC and 220VDC, with a rated current capacity of 10A to 12A depending on load conditions. The device utilizes a 5.3mm pin pitch for electrical connection and includes an operate time of approximately 7ms.

Power Relays, Over 2 Amps Feature Summary

• Miniature form factor suitable for dense PCB layouts
• Versatile mounting options including direct PCB soldering and socket usage
• Standard DC coil operation with defined power consumption

Power Relays, Over 2 Amps Applications

• Industrial control panel signal switching
• Automation equipment logic circuits
• General purpose electronic device interlocking

Power Relays, Over 2 Amps Procurement Notes

Verify that the specific order matches the 40.31.9.024.0000 designation to ensure correct coil voltage and contact configuration. Confirm compatibility with standard 5.3mm pitch sockets if plug-in application is required. Ensure environmental ratings meet operational temperature requirements. Cross-reference datasheet specifications against system interface constraints before finalizing procurement.

Power Relays, Over 2 Amps Selection Notes

Select this component when a compact SPDT relay is needed for low-power control signals. The 24VDC coil aligns with common industrial control voltages. Consider the 10A rating for moderate load switching. Evaluate space constraints due to the miniature package size. Verify that the 5.3mm pitch fits existing board footprints or available socket inventory.

Power Relays, Over 2 Amps Part Context

This model belongs to the Finder 40 series, a line of miniature relays characterized by small footprint and high reliability. The series offers various coil voltages and contact configurations. The 40.31 variant specifically denotes the SPDT configuration within this family, widely used in general-purpose applications requiring compact switching solutions.

Power Relays, Over 2 Amps Replacement Considerations

Direct substitutes include other 40 series models with identical pin pitch and contact configuration but different coil voltages, such as 40.31.8.024.0000 variants. Ensure replacement units maintain the same 5.3mm pitch and SPDT topology for mechanical and functional interchangeability.
