40.52.7.012.0000

Power Relays, Over 2 Amps Overview

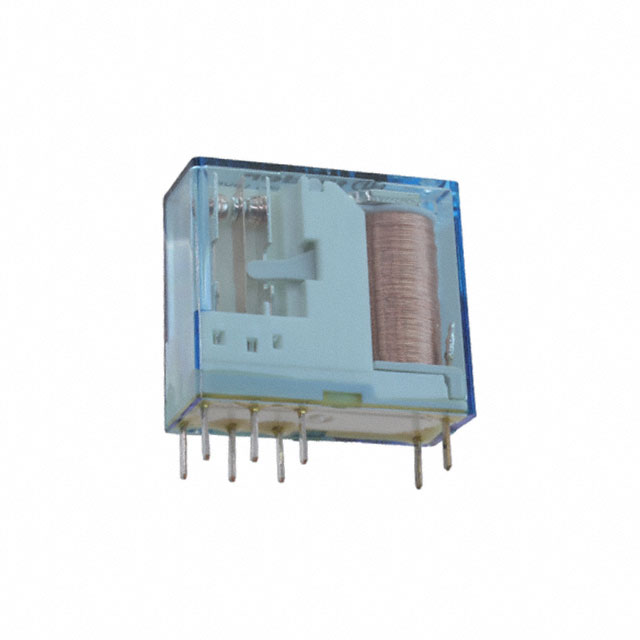

The Finder 40.52.7.012.0000 is a miniature electromechanical relay from the 40 Series, designed for PCB mounting or plug-in applications. It features a 12VDC coil with a power consumption of 650 mW and a contact configuration of DPDT (2 Form C). The contacts are rated for a maximum switching current of 8A and a voltage up to 250VAC. This component provides high isolation capabilities, including 6KV dielectric strength between coil and contacts, along with an 8mm creepage and clearance distance.

Power Relays, Over 2 Amps Feature Summary

• Miniature form factor suitable for dense PCB layouts
• High electrical isolation with 6KV coil-to-contact rating
• Dual independent switching paths via DPDT configuration
• Compatible with standard socket bases for easy replacement

Power Relays, Over 2 Amps Applications

• Industrial control panel signal switching
• HVAC system actuator control
• Automotive electronics module interfacing
• Consumer appliance logic circuits

Power Relays, Over 2 Amps Procurement Notes

Verify that the specific order matches the 40.52.7.012.0000 designation, as Finder offers multiple coil sensitivities and contact configurations within the same series. Confirm whether the required unit includes a compatible socket base, as these are often sold separately. Ensure the application environment does not exceed the specified temperature range or mechanical shock limits defined in the official datasheet.

Power Relays, Over 2 Amps Selection Notes

Select this model when a compact relay with dual independent switching paths is required for low-power DC control signals. The 12VDC coil specification makes it suitable for systems powered by standard 12V rails. Consider the 8A contact rating against the actual load requirements; if higher current capacity is needed, other series may be more appropriate. Verify pin pitch compatibility with the target PCB footprint.

Power Relays, Over 2 Amps Part Context

This component belongs to the Finder 40 Series, a line of miniature general-purpose relays known for their small footprint and reliability. The series supports various coil voltages and contact arrangements, allowing for flexible design integration. The 40.52 variant specifically denotes the DPDT configuration with a sensitive 12VDC coil, balancing power efficiency with switching capability.

Power Relays, Over 2 Amps Replacement Considerations

Direct substitutes include other 40.52 variants with different coil voltages, such as 40.52.7.024.0000 for 24VDC applications. Cross-series replacements require verifying pinout compatibility and physical dimensions. Always confirm that the alternative part meets or exceeds the original's electrical ratings and isolation standards.
