435-90-206-00-160000

Headers, Male Pins Overview

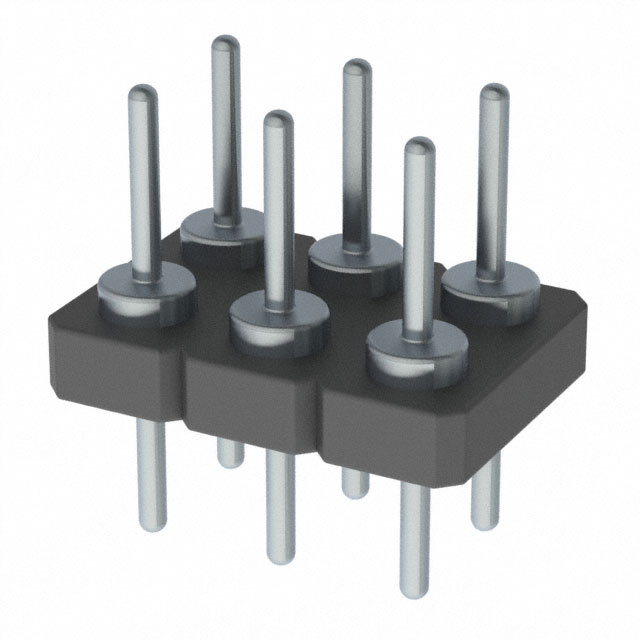

The Mill-Max 435-90-206-00-160000 is a vertical board-to-board header connector featuring six contacts arranged in a dual-row configuration. It utilizes a 2.54mm (0.100 inch) pin spacing to ensure precise alignment with mating receptacles. The component employs straight solder terminals for secure through-hole mounting on printed circuit boards. Designed for reliable signal transmission, this male connector series supports standard industrial interconnection requirements.

Headers, Male Pins Feature Summary

• Vertical orientation facilitates compact board stacking and space-efficient assembly layouts
• Dual-row structure provides increased contact density within a minimal footprint area
• Solder terminal design ensures robust mechanical fixation during wave or manual soldering processes

Headers, Male Pins Applications

• Industrial control system interface modules
• Consumer electronics internal board connections
• Telecommunications equipment signal routing

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm exact pin count, row configuration, and termination style. Ensure compatibility with mating receptacle specifications regarding pitch and contact geometry. Confirm RoHS compliance status if required by project regulations. Cross-reference the manufacturer part number with distributor catalogs to validate current availability and active status before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this connector when vertical board-to-board interconnection is required with a standard 2.54mm pitch. The six-contact dual-row layout suits applications needing moderate I/O density in constrained spaces. Ensure the mating device accepts male pins and matches the specified header height. Validate that the soldering process accommodates the through-hole terminal design without damaging adjacent components.

Headers, Male Pins Part Context

This component belongs to the Mill-Max 435 series of rectangular connectors, which are widely used for general-purpose interconnections. The series offers various contact counts and configurations to support diverse electronic assembly needs. As a standard header, it pairs with corresponding socket connectors to establish temporary or semi-permanent electrical pathways between circuit boards.

Headers, Male Pins Replacement Considerations

Compatible substitutes include the 435-10-206-00-160000 variant, which shares identical electrical and mechanical specifications but may differ in packaging or minor manufacturing revisions. Verify pin count, pitch, and mounting orientation before substitution to maintain circuit integrity.
