440680046

Headers, Male Pins Overview

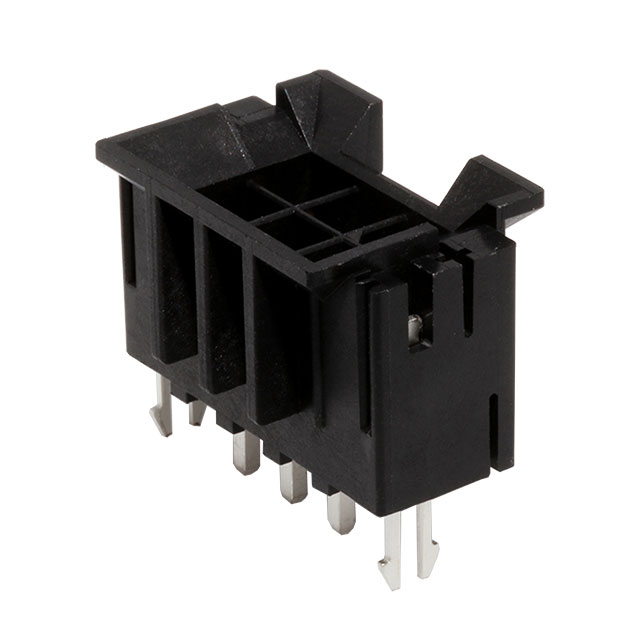

The Molex 440680046 is a Mini-Fit Blind Mate Interface (BMI) connector header designed for high-current and high-density applications. It features a dual-row, vertical through-hole configuration with six circuits. The connector utilizes a 4.20mm pitch and includes a retention clip to secure mating connections. It is specified for use with PCBs of 2.39mm thickness and employs tin plating on the contacts.

Headers, Male Pins Feature Summary

• Supports up to 13.0A current capacity
• Enables misalignment tolerance during mating
• Includes integrated retention clip

Headers, Male Pins Applications

• High-current electronic assemblies
• High-density circuit board interconnects
• Blind mate interface systems

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required pin count, pitch, and mounting style. Confirm that the tin plating and retention clip features align with the design specifications. Ensure compatibility with the intended PCB thickness and current requirements before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a robust, high-current connection is required alongside alignment tolerance. The BMI series is suitable for applications where precise initial alignment may be challenging. Verify that the 4.20mm pitch fits the available board space and that the 13.0A rating meets the electrical load demands.

Headers, Male Pins Part Context

This component belongs to the Mini-Fit BMI series, which is engineered for reliable power distribution in compact spaces. The series is characterized by its ability to handle significant current loads while maintaining a small footprint. The blind mate feature distinguishes it from standard headers by allowing for easier assembly without perfect alignment.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available.
