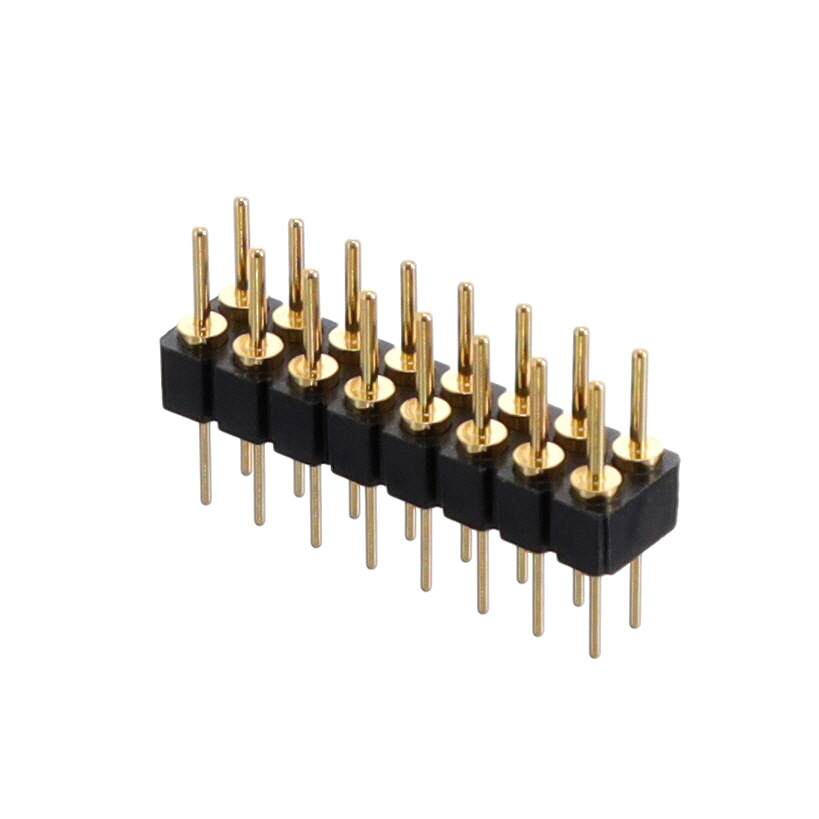

450-10-216-00-001000

450-10-216-00-001000 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Mill-Max Manufacturing Corp.. Its product description is CONN HEADER VERT 16POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 450-10-216-00-001000

• Description：CONN HEADER VERT 16POS 2.54MM
• Series：450
• Mfr：Mill-Max Manufacturing Corp.
• Package：Tube
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：16
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Number of Positions Loaded：All
• Style：Board to Board
• Shrouding：Unshrouded
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.166" (4.22mm)
• Contact Length - Post：0.156" (3.96mm)
• Overall Contact Length：0.477" (12.12mm)
• Insulation Height：0.110" (2.79mm)
• Contact Shape：Circular
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：10.0µin (0.25µm)
• Contact Finish - Post：Gold
• Contact Material：Brass Alloy
• Insulation Material：Polycyclohexylenedimethylene Terephthalate (PCT)
• Features：-
• Operating Temperature：-
• Ingress Protection：-
• Material Flammability Rating：-
• Insulation Color：Black
• Current Rating (Amps)：-
• Voltage Rating：-

Headers, Male Pins datasheet and documents for 450-10-216-00-001000
