450-10-224-00-001000

Headers, Male Pins Overview

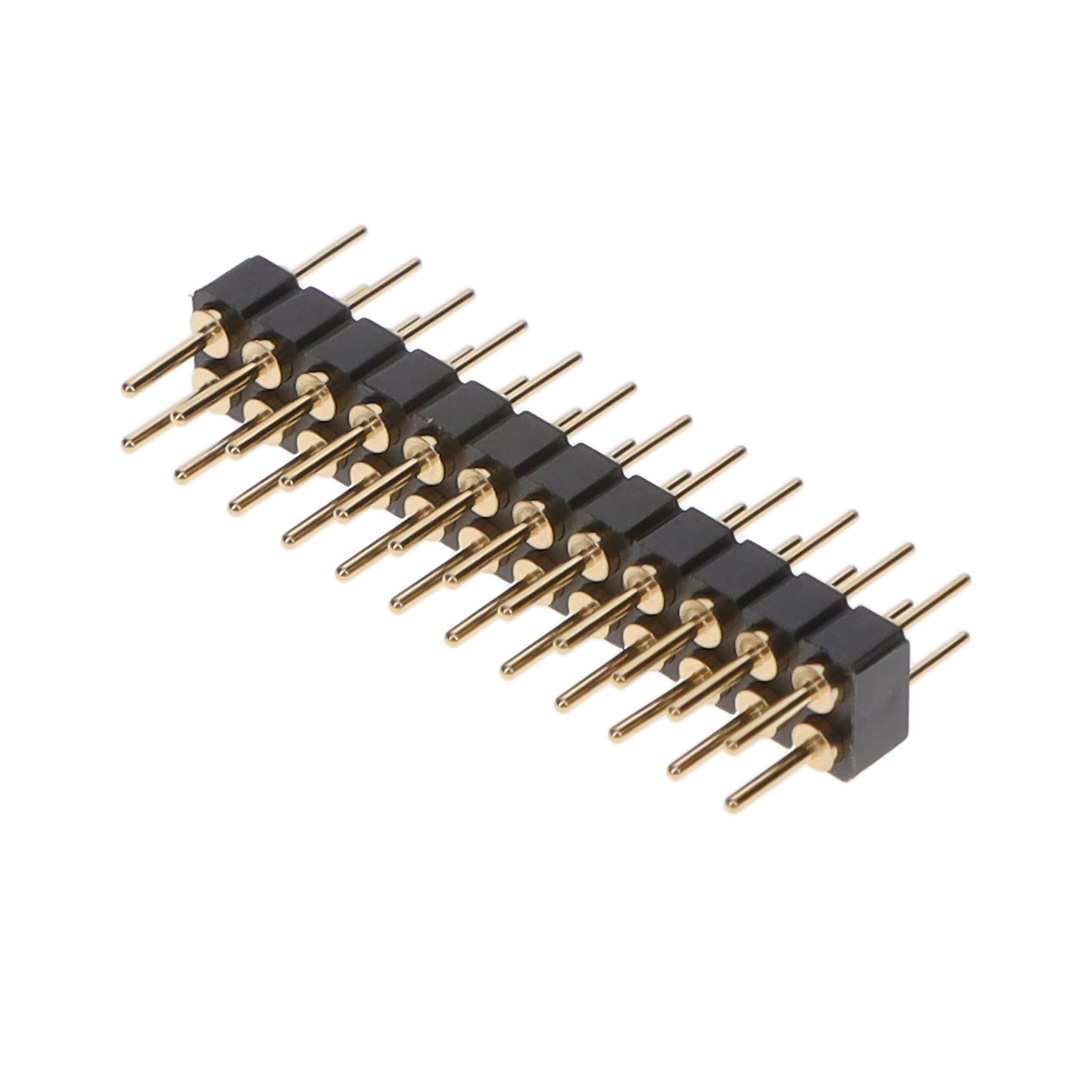

The Mill-Max 450-10-224-00-001000 is a vertical pin header connector designed for through-hole mounting. It features 24 positions with a 0.100-inch (2.54mm) pitch. The connector utilizes round, male pins with tin plating and a PCT insulator. It belongs to the 450 series and is classified as a standard pin header.

Headers, Male Pins Feature Summary

• Vertical orientation for board-to-board or wire housing applications
• Through-hole termination method for secure PCB attachment
• Tin-plated round male contacts for reliable signal transmission

Headers, Male Pins Applications

• General electronic interconnect systems
• Industrial control panel wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the exact part number against official Mill-Max documentation to ensure compatibility with specific design requirements. Confirm that the 24-position configuration matches the target circuit layout. Check for any specific handling instructions regarding the through-hole soldering process to maintain connection integrity during assembly.

Headers, Male Pins Selection Notes

Select this component when a vertical, 24-pin header with 2.54mm spacing is required. Ensure the application supports through-hole technology. Verify that the tin-plated contact finish meets the environmental and conductivity needs of the specific circuit interface.

Headers, Male Pins Part Context

This part belongs to the Mill-Max 450 series of headers and wire housings. It is a standard pin header variant manufactured by Mill-Max Manufacturing Corp., focusing on precision-machined interconnect components for high-reliability applications.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed in the provided source material. Consult official Mill-Max catalogs for equivalent series parts if alternative sourcing is necessary.
