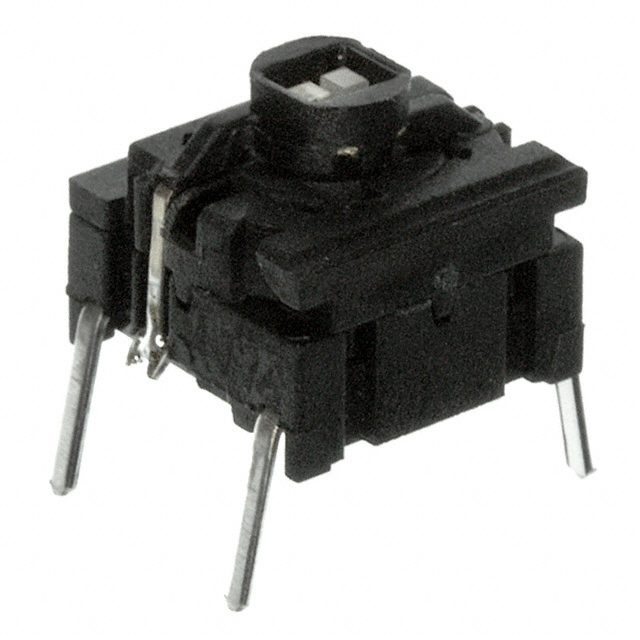

4ATH98222

4ATH98222 is listed in the Tactile Switches range at ChipApex. The manufacturer field lists MEC Switches. Its product description is SWITCH TACTILE SPST-NO 0.05A 24V. Review the specifications below when checking this part for your BOM.

Tactile Switches specifications for 4ATH98222

• Description：SWITCH TACTILE SPST-NO 0.05A 24V
• Series：Multimec® 4
• Mfr：MEC Switches
• Package：Tube
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Contact Rating @ Voltage：0.05A @ 24VDC
• Actuator Type：Plunger for Cap
• Mounting Type：Through Hole
• Actuator Height off PCB, Vertical：8.40mm
• Actuator Length, Right Angle：-
• Actuator Orientation：Top Actuated
• Termination Style：PC Pin
• Outline：10.10mm x 10.10mm
• Illumination：Illuminated
• Illumination Type, Color：LED, Green/Red
• Illumination Voltage (Nominal)：2.0, 2.2 VDC
• Operating Force：300gf
• Ingress Protection：IP67 - Dust Tight, Waterproof
• Features：Sealed - Flux Protection
• Operating Temperature：-30°C ~ 85°C

Tactile Switches datasheet and documents for 4ATH98222
