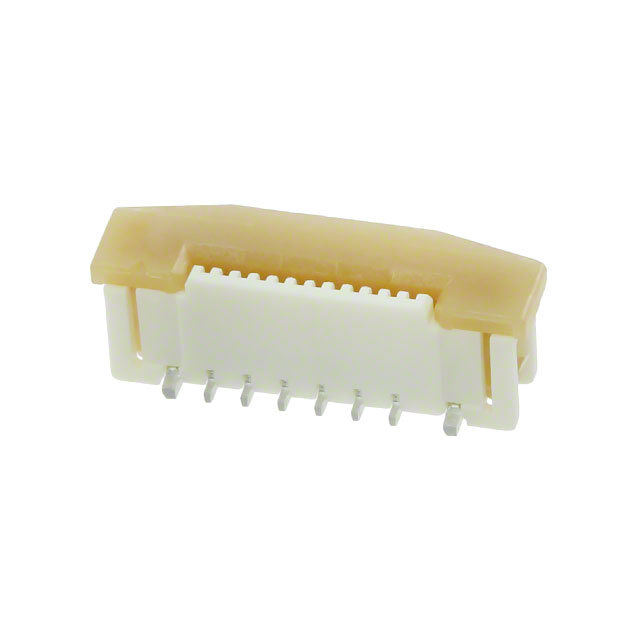

525591252

525591252 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN FFC VERT 12POS 0.5MM SMD. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 525591252

• Description：CONN FFC VERT 12POS 0.5MM SMD
• Series：Easy-On 52559
• Mfr：Molex
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FFC, FPC
• Mounting Type：Surface Mount
• Connector/Contact Type：Contacts, Vertical - 1 Sided
• Number of Positions：12
• Pitch：0.020" (0.50mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.154" (3.90mm)
• Locking Feature：Slide Lock
• Cable End Type：Straight, Tapered
• Contact Material：Phosphor Bronze
• Contact Finish：Gold
• Housing Material：Polyamide (PA46), Nylon 4/6
• Actuator Material：Polyphenylene Sulfide (PPS)
• Features：Zero Insertion Force (ZIF)
• Voltage Rating：50V
• Operating Temperature：-40°C ~ 85°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 525591252
