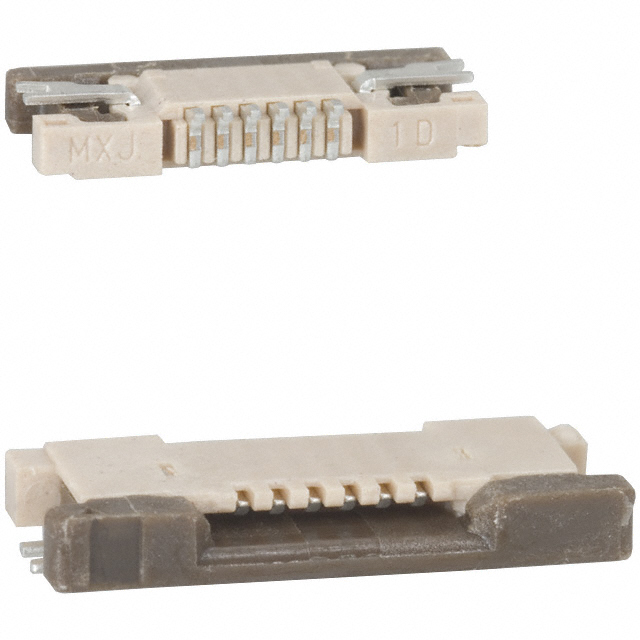

FFC, FPC (Flat Flexible) Connector Assemblies 545500694 product image

545500694

$0.47

Description：CONN FFC FPC TOP 6POS 0.5MM R/A
Series：Easy-On 54550
Mfr：Molex
Package：Tape & Reel (TR)

SKU:13c9cebbe8f1 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

545500694 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN FFC FPC TOP 6POS 0.5MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 545500694

Description：CONN FFC FPC TOP 6POS 0.5MM R/A
Series：Easy-On 54550
Mfr：Molex
Package：Tape & Reel (TR)
Flat Flex Type：FFC, FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Top
Number of Positions：6
Pitch：0.020" (0.50mm)
Termination：Solder
FFC, FCB Thickness：0.30mm
Height Above Board：0.047" (1.20mm)
Locking Feature：Slide Lock
Cable End Type：Straight, Tapered
Contact Material：Phosphor Bronze
Contact Finish：Tin Bismuth
Housing Material：Liquid Crystal Polymer (LCP)
Actuator Material：Polyphenylene Sulfide (PPS)
Features：Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating：50V
Operating Temperature：-20°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 545500694

545500694
