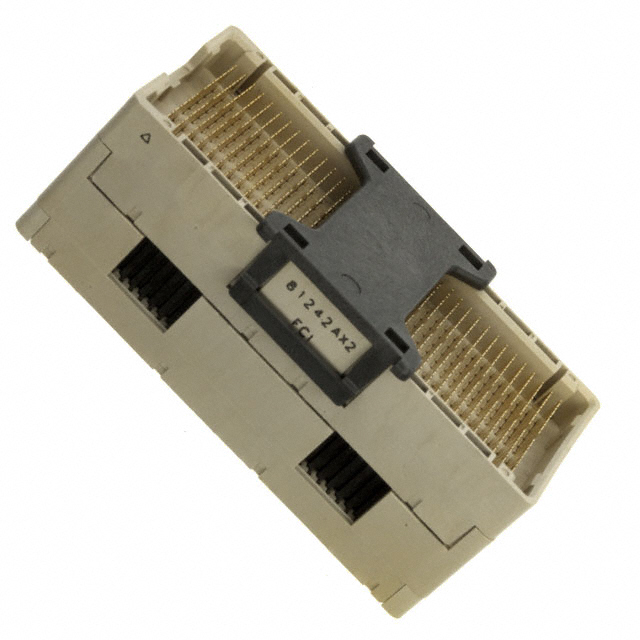

Arrays, Edge Type, Mezzanine (Board To Board) 55727-001LF product image

55727-001LF

Description：CONN DIFF ARRAY PLUG 296POS SMD
Series：GIG-Array®, MezzSelect™
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:9db10e29ce54 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: Amphenol ICC (FCI)

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

55727-001LF is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN DIFF ARRAY PLUG 296POS SMD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 55727-001LF

Description：CONN DIFF ARRAY PLUG 296POS SMD
Series：GIG-Array®, MezzSelect™
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Differential Pair Array, Male
Number of Positions：296 Signal (148 Pair)
Pitch：0.051" (1.30mm)
Number of Rows：18
Mounting Type：Surface Mount
Features：-
Contact Finish：Gold or Gold, GXT™
Contact Finish Thickness：30.0µin (0.76µm)
Mated Stacking Heights：25mm, 35mm
Height Above Board：0.773" (19.64mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for 55727-001LF
