5975036507F

LED Indication - Discrete Overview

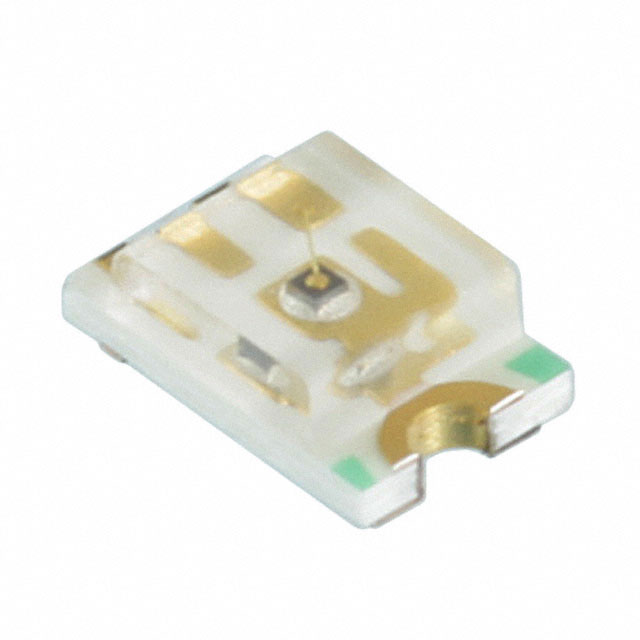

The Dialight 5975036507F is a single-color red surface-mount LED in the 597 series, housed in an 0805 (2012 metric) package. It emits at a primary wavelength of 620nm with a typical forward voltage of 2V and a test current of 20mA. The component features a rectangular lens with a flat top, measuring 1.40mm x 1.24mm, and has a maximum height of 0.93mm. It offers a luminous intensity of 120mcd and complies with RoHS3 standards.

LED Indication - Discrete Feature Summary

• Standard configuration with a non-diffused rectangular lens for clear visual indication
• Surface-mount design optimized for automated assembly processes
• Compliant with RoHS3 environmental regulations

LED Indication - Discrete Applications

• Electronic equipment status indicators
• Control panel signal lights
• General-purpose circuit board illumination

LED Indication - Discrete Procurement Notes

This component is officially obsolete as per PCN OBS dated December 9, 2025. Verify end-of-life status before integration. Sourcing may be limited to existing inventory or third-party distributors. Confirm authenticity and storage conditions due to potential age-related degradation of moisture-sensitive components.

LED Indication - Discrete Selection Notes

Select this part only if the 0805 footprint and 620nm red emission align with design requirements. Consider alternative active parts from the same manufacturer for long-term supply stability. Ensure thermal management supports the specified power rating during operation.

LED Indication - Discrete Part Context

Part of the Dialight 597 series of surface-mount LEDs, designed for compact electronic applications. The series provides various colors and intensities in standardized packages to facilitate consistent manufacturing workflows across different product lines.

LED Indication - Discrete Replacement Considerations

No public confirmed substitute part numbers are available. Due to the obsolete status, engineers must evaluate pin-compatible alternatives or redesign PCB footprints to accommodate newer generation components.
