5976325607F

LED Indication - Discrete Overview

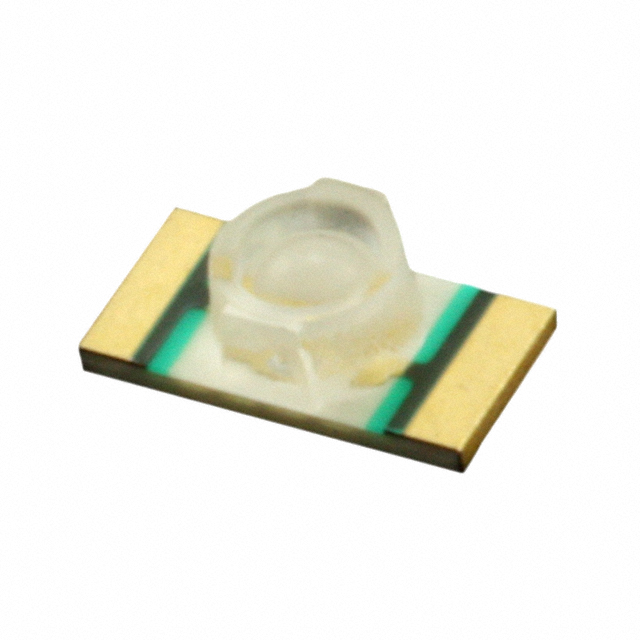

The Dialight 5976325607F is a single-color green surface-mount LED in a 1206 (3216 metric) package. It features a bottom-entry mounting style with a round, domed lens of 1.60 mm diameter and a maximum height of 1.23 mm. The component emits at a peak wavelength of 530 nm with a typical forward voltage of 3.3 V at a test current of 20 mA. It offers a viewing angle of 70 degrees and complies with RoHS3 standards.

LED Indication - Discrete Feature Summary

• Bottom-entry surface mount configuration for specialized PCB layouts
• Water clear round domed lens design
• Compliant with RoHS3 environmental standards

LED Indication - Discrete Applications

• General indicator lighting
• Electronic status displays
• Instrumentation panels

LED Indication - Discrete Procurement Notes

Verify availability as this component is marked as obsolete or discontinued by the manufacturer. Confirm if existing stock remains available through authorized distributors before finalizing design-in decisions. Ensure replacement strategies are prepared for long-term production support given the end-of-life status.

LED Indication - Discrete Selection Notes

Select this part only for prototyping or legacy system maintenance where specific form factors are required. For new designs, consider alternative green LEDs in the same 1206 footprint that are currently in active production to ensure supply chain stability and consistent manufacturing support.

LED Indication - Discrete Part Context

This component belongs to the Dialight 597 series of MicroLEDs. It is designed for high-brightness indication applications requiring a compact profile. The 1206 package size allows for dense circuit board placement while maintaining adequate visibility for status indicators in consumer and industrial electronics.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not provided in the source documentation due to the component's discontinued status. Engineers should evaluate other green SMD LEDs from the same manufacturer or competitors that match the 1206 footprint and electrical characteristics.
