5988E20107F

Overview

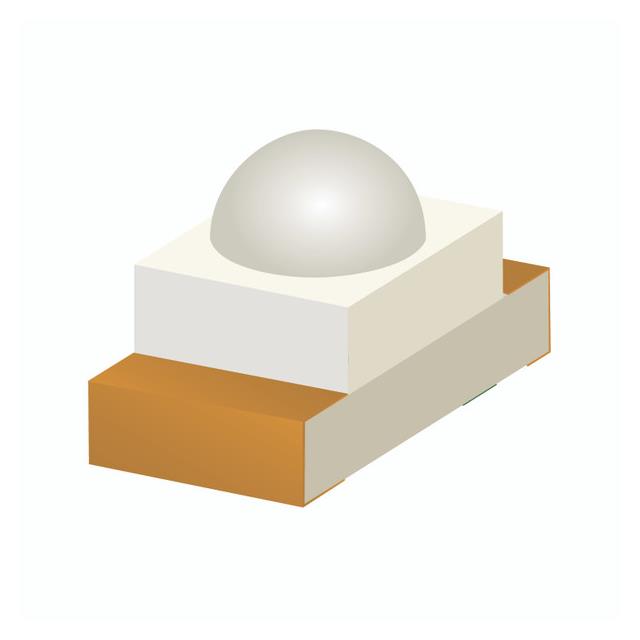

The Dialight 5988E20107F is a red-orange surface-mount LED in the 598 series. It features a 0603 (1608 metric) package with dimensions of 1.60mm x 0.80mm and a maximum height of 1.06mm. The component emits light at a primary wavelength of 625nm with a typical forward voltage of 2V at a test current of 20mA. It offers a viewing angle of 140 degrees and an intensity of 500mcd. The lens is clear, non-tinted, and dome-shaped. It complies with RoHS3 standards.

Feature Summary

• Red-orange emission at 625nm wavelength
• High intensity output of 500mcd
• Wide 140-degree viewing angle
• Standard SMD 0603 footprint

Applications

• Panel indicator lights
• Status indication on electronic devices
• Instrumentation displays

Procurement Notes

Verify the specific ordering suffix to confirm the exact color bin and packaging configuration. Ensure compatibility with standard reflow soldering profiles for 0603 components. Check for moisture sensitivity level requirements during storage and handling procedures.

Selection Notes

Select this component when a compact 0603 form factor is required for high-visibility red-orange signaling. Consider the 140-degree viewing angle for broad visibility applications. Verify that the 2V forward voltage aligns with the system's drive circuit capabilities.

Part Context

This part belongs to the Dialight 598 series of MicroLEDs. These are designed for space-constrained printed circuit board layouts. The series provides various colors and intensities in standardized surface-mount packages for industrial and commercial electronics.

Replacement Considerations

The manufacturer recommends the 5988E20107F as a replacement for discontinued variants within the same series. Cross-referencing with other 0603 red-orange LEDs requires verification of luminous intensity and forward voltage parameters.
