599-0411-127F

Overview

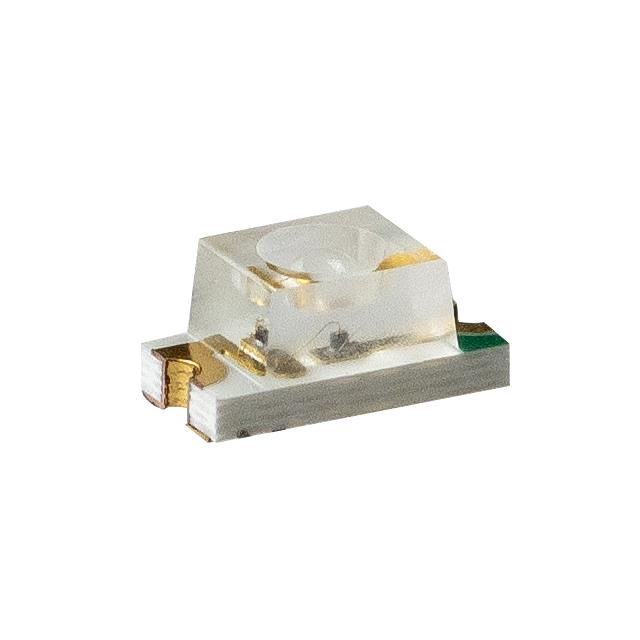

The Dialight 599-0411-127F is a single-color surface-mount LED in the 1206 (3216 Metric) package. It emits red light at a wavelength of 630 nm with a viewing angle of 120 degrees. The component operates at a forward current of 20 mA and a forward voltage of 2.1 V. It features a water-clear lens and has an operating temperature range from -40°C to +85°C.

Feature Summary

• Dual-leaded SMD configuration for standard PCB mounting
• Water-clear rectangular lens design for optimized light transmission
• High-intensity red emission suitable for visual status indication

Applications

• Electronic equipment status indicators
• Control panel signal lights
• Consumer appliance front panels

Procurement Notes

Verify the specific datasheet revision and RoHS compliance documentation upon order confirmation. Confirm that the 1206 footprint matches the target PCB layout. Ensure storage conditions adhere to moisture sensitivity level requirements prior to reflow soldering.

Selection Notes

Select this component when a compact, high-brightness red indicator is required for space-constrained designs. Compare against other 1206 series LEDs if different wavelengths or lower current ratings are needed. Verify thermal management capabilities for high-density assemblies.

Part Context

This part belongs to the Dialight MicroLED family, designed for general-purpose indication. It complements other discrete LEDs in the 599 series, offering standardized dimensions for automated assembly processes across various industrial and commercial electronics applications.

Replacement Considerations

Public confirmed substitute part numbers: None available.
