5990010007F

$0.17

Description：LED RED 0603 SMD
Series：599
Mfr：Dialight
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:25ec6ef598a5 Category: LED Indication - Discrete Brand: Dialight

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

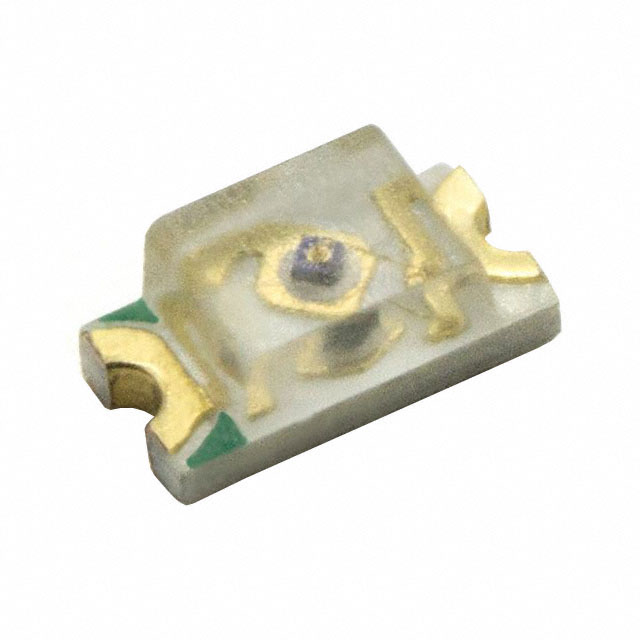

5990010007F is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Dialight. Its product description is LED RED 0603 SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for 5990010007F

Description：LED RED 0603 SMD
Series：599
Mfr：Dialight
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red
Configuration：Standard
Lens Color：-
Lens Transparency：-
Millicandela Rating：45mcd
Lens Style：Rectangle with Flat Top
Lens Size：1.10mm x 0.80mm
Voltage - Forward (Vf) (Typ)：2.1V
Current - Test：20mA
Viewing Angle：140°
Mounting Type：Surface Mount
Wavelength - Dominant：633nm
Wavelength - Peak：-
Features：-
Package / Case：0603 (1608 Metric)
Supplier Device Package：603
Size / Dimension：1.60mm L x 0.80mm W
Height (Max)：0.80mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for 5990010007F

5990010007F

LED Indication - Discrete Overview

The Dialight 5990010007F is a surface-mount LED indicator in the 599 series, packaged in a 0603 (1608 metric) case. It emits red light with a peak wavelength of 633 nm and a typical forward voltage of 2.1 V at a test current of 20 mA. The component features a rectangular lens with a flat top design and offers a viewing angle of 140 degrees. It has a luminous intensity of 45 mcd and measures 1.60 mm in length by 0.80 mm in height.

LED Indication - Discrete Feature Summary

Surface-mount construction for automated PCB assembly
High viewing angle for broad visibility
Standard configuration for general indication

LED Indication - Discrete Applications

Electronic equipment status indication
Power supply status monitoring
Control panel signaling

LED Indication - Discrete Procurement Notes

Verify the specific package type and electrical ratings against the official datasheet before integration. Confirm RoHS compliance and moisture sensitivity level requirements for your manufacturing process. Ensure the ordering suffix matches the required packaging format to avoid discrepancies in component handling and storage conditions.

LED Indication - Discrete Selection Notes

Select this component when a compact red indicator is required for space-constrained designs. The 0603 footprint allows for high-density layouts. Consider the 140-degree viewing angle for applications requiring wide visibility. Verify that the 2.1 V forward voltage aligns with the driving circuit capabilities.

LED Indication - Discrete Part Context

This part belongs to the Dialight 599 series of surface-mount LEDs. The series provides various colors and package sizes for panel and board mounting. The 599-00xx-00xF designation indicates a standard red LED in the 0603 package size within this product line.
