5990130007F

$0.21

Description：LED ORANGE 0805 SMD
Series：599
Mfr：Dialight
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:a2a5a7c74eb7 Category: LED Indication - Discrete Brand: Dialight

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

5990130007F is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Dialight. Its product description is LED ORANGE 0805 SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for 5990130007F

Description：LED ORANGE 0805 SMD
Series：599
Mfr：Dialight
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Orange
Configuration：Standard
Lens Color：-
Lens Transparency：-
Millicandela Rating：95mcd
Lens Style：Rectangle with Flat Top
Lens Size：1.40mm x 1.25mm
Voltage - Forward (Vf) (Typ)：2.1V
Current - Test：20mA
Viewing Angle：140°
Mounting Type：Surface Mount
Wavelength - Dominant：605nm
Wavelength - Peak：-
Features：-
Package / Case：0805 (2012 Metric)
Supplier Device Package：805
Size / Dimension：2.00mm L x 1.25mm W
Height (Max)：0.80mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for 5990130007F

5990130007F

LED Indication - Discrete Overview

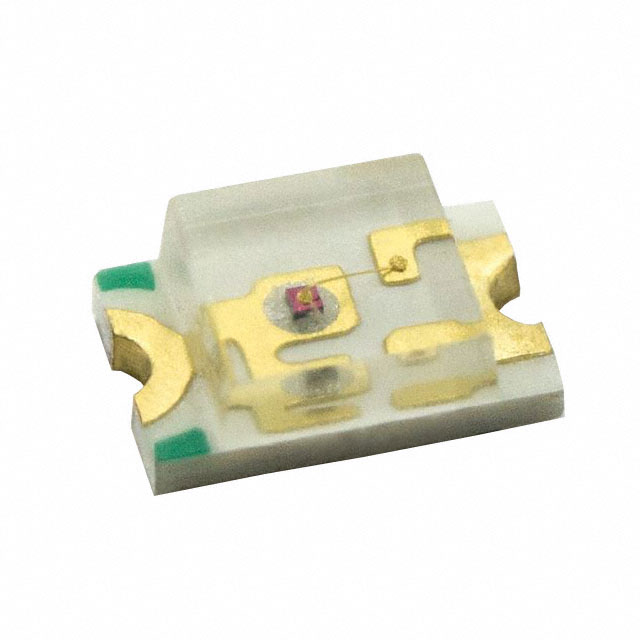

The Dialight 5990130007F is a single-color surface-mount LED indicator in the 599 series. It emits orange light with a peak wavelength of 605 nm and a typical forward voltage of 2.1 V at a test current of 20 mA. The component features a rectangular, non-diffused lens measuring 1.40 mm by 1.25 mm with a maximum height of 0.80 mm. Housed in an 0805 (2012 metric) package, it delivers a luminous intensity of 95 mcd and has a wide viewing angle of 140 degrees.

LED Indication - Discrete Feature Summary

High-brightness orange emission optimized for visual status indication
Wide 140-degree viewing angle ensures visibility from multiple angles
Standard SMD footprint facilitates automated PCB assembly processes

LED Indication - Discrete Applications

Electronic equipment status indicators
Control panel signal lights
Consumer appliance operational feedback

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to confirm the reel quantity and tape specifications. Confirm RoHS compliance status and moisture sensitivity level requirements before integration into the manufacturing process. Ensure the selected packaging format matches the available pick-and-place equipment capabilities.

LED Indication - Discrete Selection Notes

Select this component when a compact surface-mount solution is required for high-visibility orange signaling. The 0805 package offers a balance between board space efficiency and optical output. Consider the 140-degree viewing angle for applications requiring broad line-of-sight coverage without precise alignment.

LED Indication - Discrete Part Context

This part belongs to the Dialight 599 series of SMD LEDs, designed for general-purpose indication. The series provides various colors and intensities in standard footprints. The 5990130007F specifically addresses the need for reliable orange signaling in modern electronics manufacturing environments.
