5SRC-F

Overview

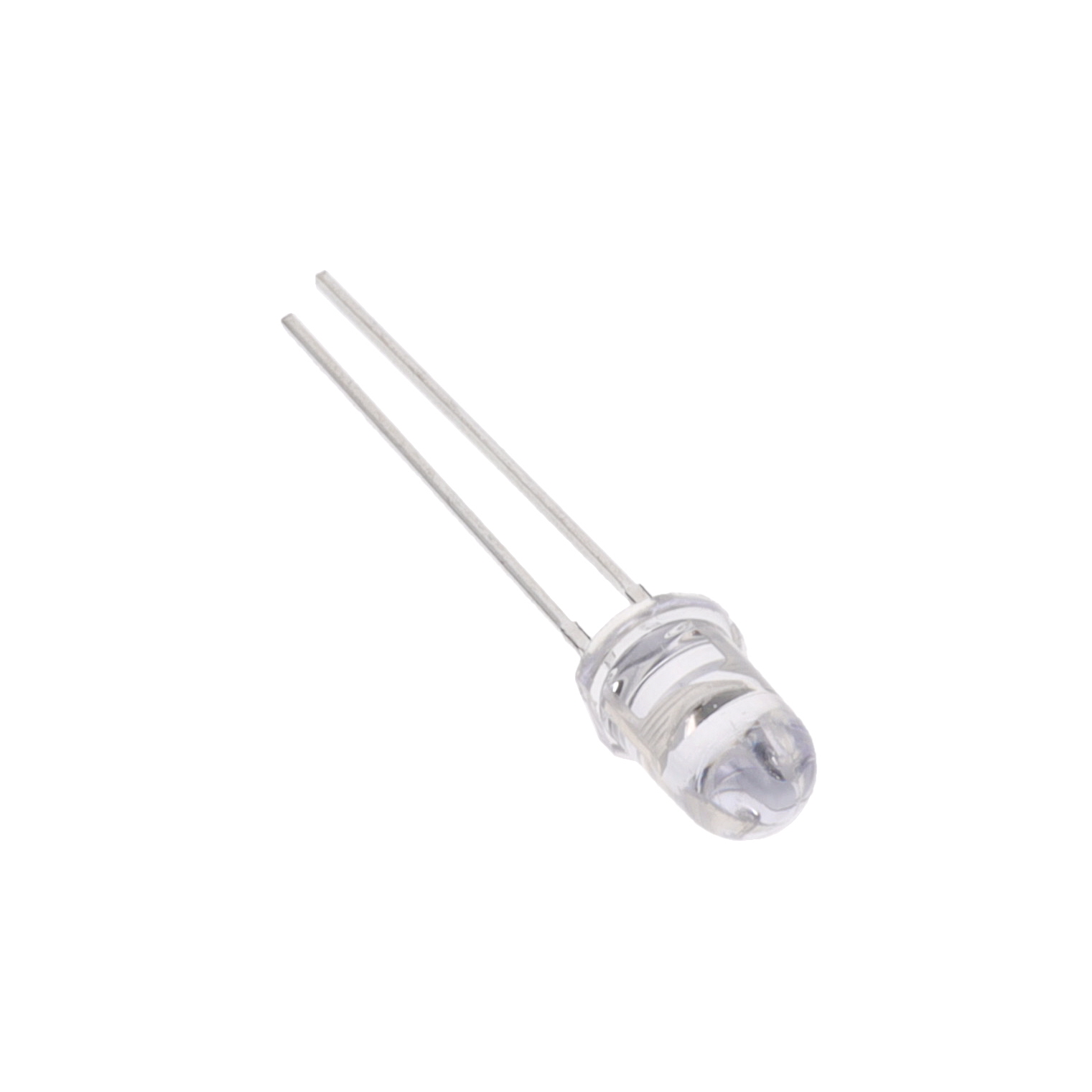

The Bivar Inc. 5SRC-F is a single-color red LED indicator designed for through-hole mounting in the T-1 3/4 (5 mm) package configuration. It emits light at a wavelength of 645 nm with a luminous intensity of 60 mcd and a viewing angle of 35 degrees. The component features a water-clear dome lens and operates with a forward voltage of 1.7 V at a test current of 20 mA, dissipating up to 70 mW. It is rated for an operating temperature range from -25 C to +85 C.

Feature Summary

• Through-hole radial lead construction for standard PCB insertion
• Water-clear dome lens design for focused light emission
• Super bright red LED technology for high visibility applications

Applications

• Panel-mounted status indicators
• Power supply operational signaling
• Electronic equipment front panels

Procurement Notes

Verify component availability as the manufacturer lists this part as Not Recommended for New Designs (NRND). Confirm end-of-life status or obsolescence notifications before finalizing designs. Check RoHS compliance details via official documentation. Ensure sourcing channels provide genuine parts given potential discontinuation risks.

Selection Notes

Select this component for legacy board replacements requiring specific 5mm form factors. Consider thermal management within the specified -25 C to +85 C range. Evaluate mechanical fit for panel cutouts matching the T-1 3/4 housing dimensions. Verify circuit compatibility with the 1.7 V forward voltage drop.

Part Context

This discrete LED belongs to Bivar's general-purpose indicator series. It serves as a visual signal source in electronic assemblies where simple on/off status indication is required. The product line focuses on reliable optical performance in compact through-hole packages.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
