5SYD

Overview

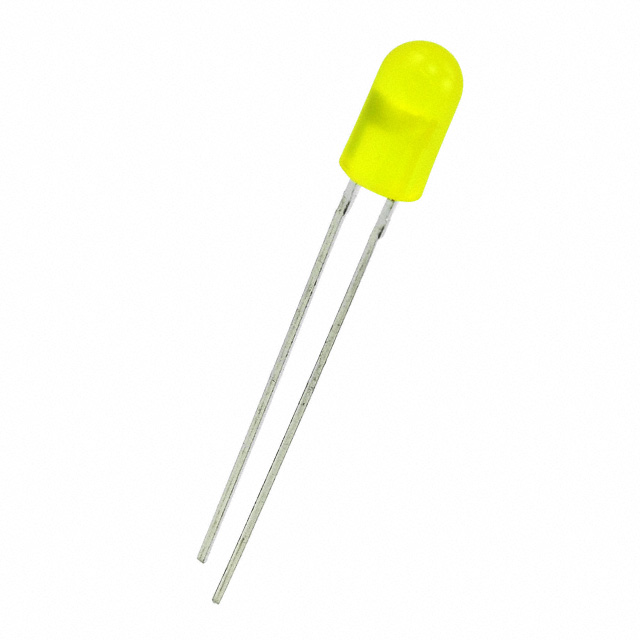

The Bivar Inc. 5SYD is a super yellow LED panel mount indicator designed for visual status signaling in electronic equipment. It features a diffused lens to provide uniform illumination and emits light at a peak wavelength of 590 nm. The component utilizes a standard 5 mm LED die with a forward voltage of 2 V and a typical forward current rating of 30 mA. It is engineered for direct panel installation using a 6.35 mm mounting hole and includes straight leads for electrical connection. The unit operates within a temperature range of -25°C to +85°C and offers a viewing angle of 40 degrees.

Feature Summary

• Super yellow emission with diffused lens for uniform light distribution
• Standard 5 mm LED configuration with straight lead termination
• Panel mount design compatible with 6.35 mm diameter apertures
• Wide operating temperature range suitable for industrial environments

Applications

• Industrial control panels requiring high-visibility status indicators
• Medical device front panels for operational state signaling
• Test and measurement equipment status displays
• Consumer appliance interface boards

Procurement Notes

Verify the specific datasheet version prior to ordering, as optical characteristics such as luminous intensity may vary between manufacturing batches. Confirm that the 30 mA forward current rating aligns with the target circuit design to ensure longevity. Check for RoHS compliance documentation if environmental regulations apply to the final assembly. Ensure the panel cutout dimension matches the required 6.35 mm specification for proper mechanical fit.

Selection Notes

Select this component when a distinct super yellow indication is required for panel-mounted applications. The 5 mm form factor allows for compact PCB layouts while maintaining visibility through the diffused lens. Consider the 40-degree viewing angle for directional visibility requirements. The straight lead style simplifies insertion into pre-drilled panel holes without requiring complex bending procedures during assembly.

Part Context

This part belongs to Bivar's line of standard panel mount indicators, which are widely used for providing clear visual feedback in various electronic systems. The 5SYD specifically addresses the need for high-intensity yellow signaling in a robust, easy-to-install package. It complements other colors in the series to support multi-state indication schemes on single or multiple control interfaces.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
