61-238/KK2C-S30306F4GB2/ET

LED Indication - Discrete Overview

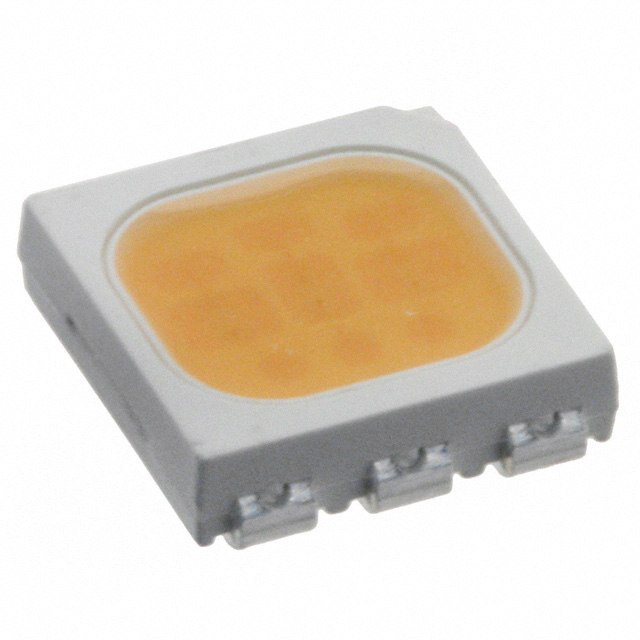

The Everlight 61-238/KK2C-S30306F4GB2/ET is a warm white surface-mount LED in a 6-PLCC package. It emits light at a 3000K color temperature with a clear lens. The device operates with a typical forward voltage of 3.25V and a test current of 20mA. It features a 120-degree viewing angle and produces an intensity of 6900mcd. Dimensions are 5.00mm x 5.00mm x 1.50mm max height.

LED Indication - Discrete Feature Summary

• Utilizes InGaN chip technology combined with special phosphors to generate white light output.
• Features a wide viewing angle design suitable for effective light guide applications.
• Constructed with a lead frame package containing individual pins for surface mount assembly.

LED Indication - Discrete Applications

• General lighting systems
• Decorative and entertainment lighting
• Indicator circuits
• Illumination devices

LED Indication - Discrete Procurement Notes

Verify the specific suffix codes against official Everlight documentation to confirm exact binning and optical characteristics. Ensure compliance with RoHS3 standards and check moisture sensitivity level (MSL 3) requirements for storage and handling during procurement.

LED Indication - Discrete Selection Notes

Select this component for designs requiring a standard 6-pin SMD footprint with high luminosity. Consider the 3.25V forward voltage drop for driver circuit compatibility. Verify thermal management needs as the maximum operating temperature reaches 85°C.

LED Indication - Discrete Part Context

This part belongs to the 61-238 series of single-color LEDs manufactured by Everlight Electronics. The series utilizes super-luminosity chips within a compact SMT package, designed for efficient integration into modern electronic lighting and indicator applications.

LED Indication - Discrete Replacement Considerations

Consult official substitution guides for compatible parts within the same series or equivalent packages from other manufacturers ensuring matching electrical and mechanical specifications.
