61-238/KK2C-S40408F6GB2/ET

LED Indication - Discrete Overview

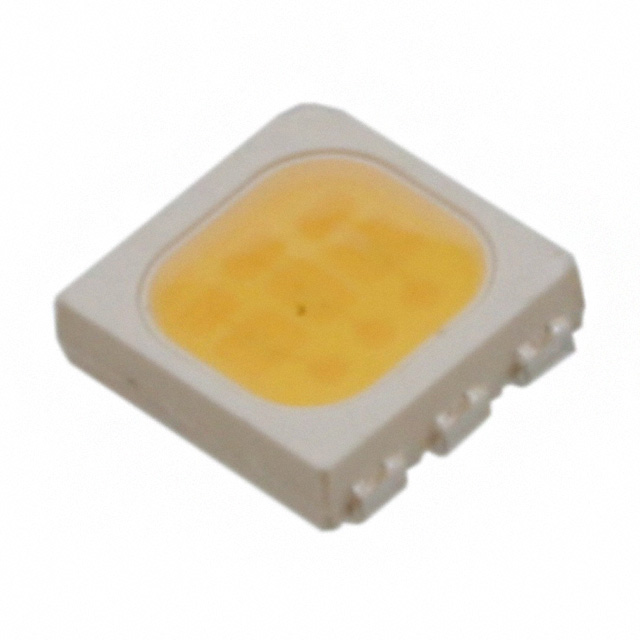

The 61-238/KK2C-S40408F6GB2/ET is a single-color surface-mount LED manufactured by Everlight Electronics Co Ltd. It emits cool white light with a water clear lens and utilizes a 6-pin PLCC package. The device supports infrared reflow soldering and complies with RoHS standards. Key electrical parameters include a maximum forward current of 0.03 A, a nominal luminous intensity of 5400 mcd, and a typical forward voltage of 3.25 V at a test current of 20 mA. The operating temperature range spans from -40 °C to 85 °C, with a total height of 1.5 mm.

LED Indication - Discrete Feature Summary

• Utilizes InGaN material technology combining blue LEDs with special phosphors for white light emission.
• Features a wide viewing angle design suitable for light guide applications.
• Supports infrared reflow soldering methods for surface mount assembly.

LED Indication - Discrete Applications

• General lighting
• Decorative and Entertainment Lighting
• Indicators
• Illuminations

LED Indication - Discrete Procurement Notes

Verify the specific suffix codes against official Everlight documentation to confirm exact color temperature and binning specifications. Ensure that the selected variant matches the required thermal management and optical intensity criteria for the target application. Cross-reference the datasheet for precise handling instructions regarding moisture sensitivity level (MSL) classification.

LED Indication - Discrete Selection Notes

Select this component based on its 6-pin SMD footprint and compatibility with standard IR reflow processes. Evaluate the 120-degree viewing angle and low power consumption characteristics against system illumination requirements. Confirm that the 3.25 V forward voltage aligns with the driving circuit constraints and verify the 5400 mcd intensity meets visibility needs.

LED Indication - Discrete Part Context

This model belongs to the 61-238 series of super-luminosity chip LEDs designed for high-efficiency lighting solutions. The series emphasizes low power consumption and wide viewing angles, making it distinct from through-hole alternatives. It represents Everlight's focus on compact, high-intensity white light sources for modern electronic displays and ambient lighting systems.

LED Indication - Discrete Replacement Considerations

Consult official Everlight substitution guides for compatible part numbers within the same series. Verify pinout compatibility and thermal performance when considering alternative manufacturers. No direct substitute part numbers are publicly confirmed in the provided source data.
