Product Detailed Parameters
- Description：LED COOL WHITE DIFF 6PLCC SMD
- Series：-
- Mfr：Everlight Electronics Co Ltd
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：White, Cool
- Configuration：Standard
- Lens Color：Yellow
- Lens Transparency：Diffused
- Millicandela Rating：7100mcd
- Lens Style：Rectangle with Flat Top
- Lens Size：4.36mm x 3.96mm
- Voltage - Forward (Vf) (Typ)：3.25V
- Current - Test：3 x 20mA
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：5650K ~ 7000K
- Wavelength - Peak：-
- Features：-
- Package / Case：6-SMD, J-Lead
- Supplier Device Package：6-PLCC
- Size / Dimension：5.00mm L x 5.00mm W
- Height (Max)：1.50mm
- Grade：-
- Qualification：-
Download product information
Overview

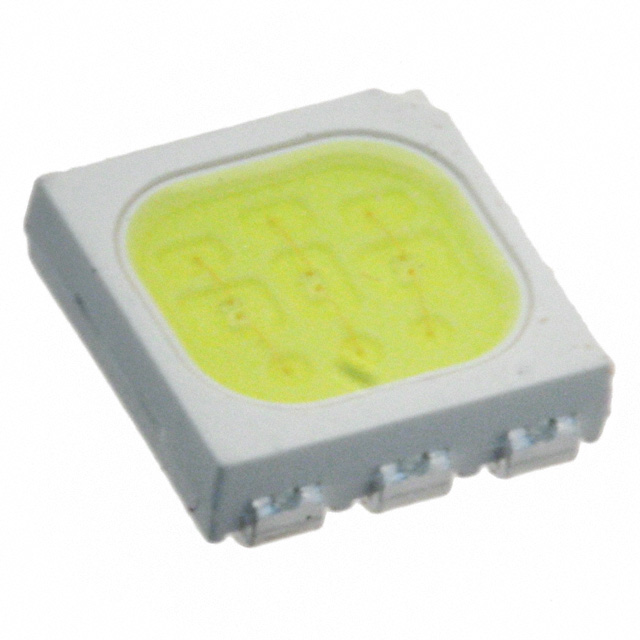

The Everlight 61-238/LK2C-B56706F4GB2/ET is a cool white surface-mount LED in a 6-PLCC package. It emits light within the 5650K to 7000K color temperature range with a typical forward voltage of 3.25V. The component features a diffused yellow lens and offers a 120-degree viewing angle. Dimensions are 5.00mm x 5.00mm x 1.50mm maximum height. It operates at a test current of 3 x 20mA and achieves an intensity of 7100mcd. The device complies with RoHS3 standards and has a moisture sensitivity level of 3.
Feature Summary
- Cool white emission with high luminous intensity
- Standard configuration for discrete indication
- Surface mount design with J-leads
Applications
- Logic state indication
- Power status signaling
- Equipment operational indicators
Procurement Notes
Verify the specific suffix codes against the manufacturer datasheet to ensure correct color temperature and binning requirements. Confirm that the 6-PLCC package dimensions align with the target PCB footprint. Check RoHS3 compliance documentation for regulatory adherence. Ensure storage conditions respect the MSL 3 rating to prevent moisture damage before reflow soldering.
Selection Notes
Select this component when a compact, high-intensity cool white indicator is required for surface-mount assembly. The 120-degree viewing angle provides broad visibility for status signals. Consider the 3.25V forward voltage drop for circuit power calculations. The standard configuration suits general-purpose electronic equipment where space constraints limit larger LED packages.
Part Context
This part belongs to Everlight's discrete LED indicator series, designed for reliable visual signaling in consumer and industrial electronics. The 6-PLCC form factor allows for automated placement and consistent solder joint formation. It serves as a direct replacement for similar cool white SMD LEDs requiring comparable electrical characteristics and mechanical dimensions.
Replacement Considerations
Consult official substitution guides for equivalent Everlight parts with matching thermal and optical specifications. Verify pinout compatibility if replacing with non-Everlight components. Ensure alternative parts meet the same RoHS3 and MSL requirements for seamless integration.
