61-238/QK2C-B28322FAGB2/ET

$1.39

Description：LED WARM WHITE DIFF 6PLCC SMD
Series：-
Mfr：Everlight Electronics Co Ltd
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:f6b18017bfa9 Category: LED Indication - Discrete Brand: Everlight Electronics Co Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED WARM WHITE DIFF 6PLCC SMD
Series：-
Mfr：Everlight Electronics Co Ltd
Package：Tape & Reel (TR),Cut Tape (CT)
Color：White, Warm
Configuration：Standard
Lens Color：Yellow
Lens Transparency：Diffused
Millicandela Rating：5500mcd
Lens Style：Rectangle with Flat Top
Lens Size：4.36mm x 3.96mm
Voltage - Forward (Vf) (Typ)：3.25V
Current - Test：3 x 20mA
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：2850K ~ 3250K
Wavelength - Peak：-
Features：-
Package / Case：6-SMD, J-Lead
Supplier Device Package：6-PLCC
Size / Dimension：5.00mm L x 5.00mm W
Height (Max)：1.50mm
Grade：-
Qualification：-

Download product information

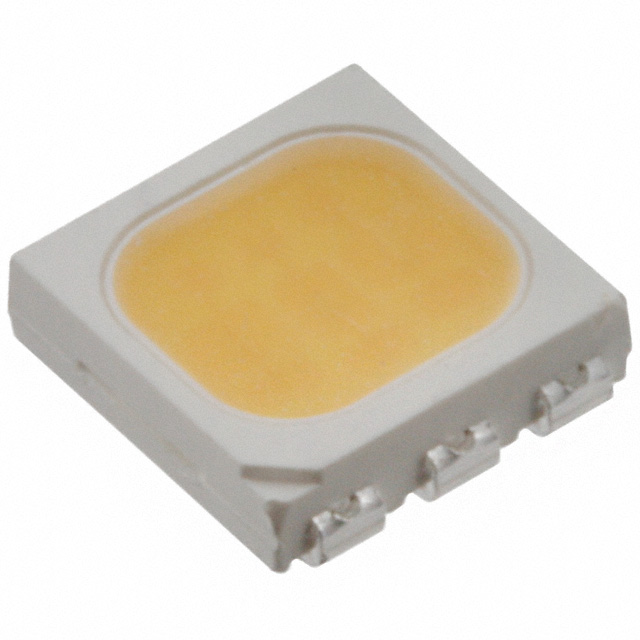

61-238/QK2C-B28322FAGB2/ET

Overview

The Everlight 61-238/QK2C-B28322FAGB2/ET is a warm white surface-mount LED in a 6-PLCC package. It emits light at a correlated color temperature of 2850K to 3250K with a typical forward voltage of 3.25V. The component features a diffused lens and a 120-degree viewing angle. Rated for a test current of 3 x 20mA, it achieves a luminous intensity of 5500mcd. The device measures 5.00mm by 5.00mm with a maximum height of 1.50mm and supports infrared soldering.

Feature Summary

Utilizes super-luminosity chip technology for high brightness output
Features a wide 120-degree viewing angle for broad illumination coverage
Constructed with a lead frame package containing individual pins for reliable mounting
Designed for low power consumption suitable for light guide applications

Applications

Decorative lighting systems
Entertainment lighting fixtures
General indicator applications
Light guide illumination modules

Procurement Notes

Verify the specific suffix FAGB2/ET against the manufacturer datasheet to confirm the exact binning for color temperature and luminous intensity. Ensure compatibility with RoHS3 standards and MSL level 3 handling requirements during storage and assembly processes.

Selection Notes

Select this component when a warm white spectrum between 2850K and 3250K is required for ambient or accent lighting. The diffused lens provides uniform light distribution, making it suitable for applications where glare reduction is necessary. Verify that the 3.25V forward voltage aligns with the circuit design constraints.

Part Context

This part belongs to the Everlight 61-238 series of single-color SMD LEDs. The series utilizes InGaN material for cool and warm white emissions. These components are designed for surface mount technology and are commonly used in consumer electronics and lighting equipment requiring compact, high-efficiency light sources.

Replacement Considerations

Direct substitutes within the same series include variations such as 61-238/KK2C-S30306F4GB2/ET for clear lens options. Cross-reference pinout dimensions and thermal characteristics before substituting with other manufacturers' 6-PLCC packages.
