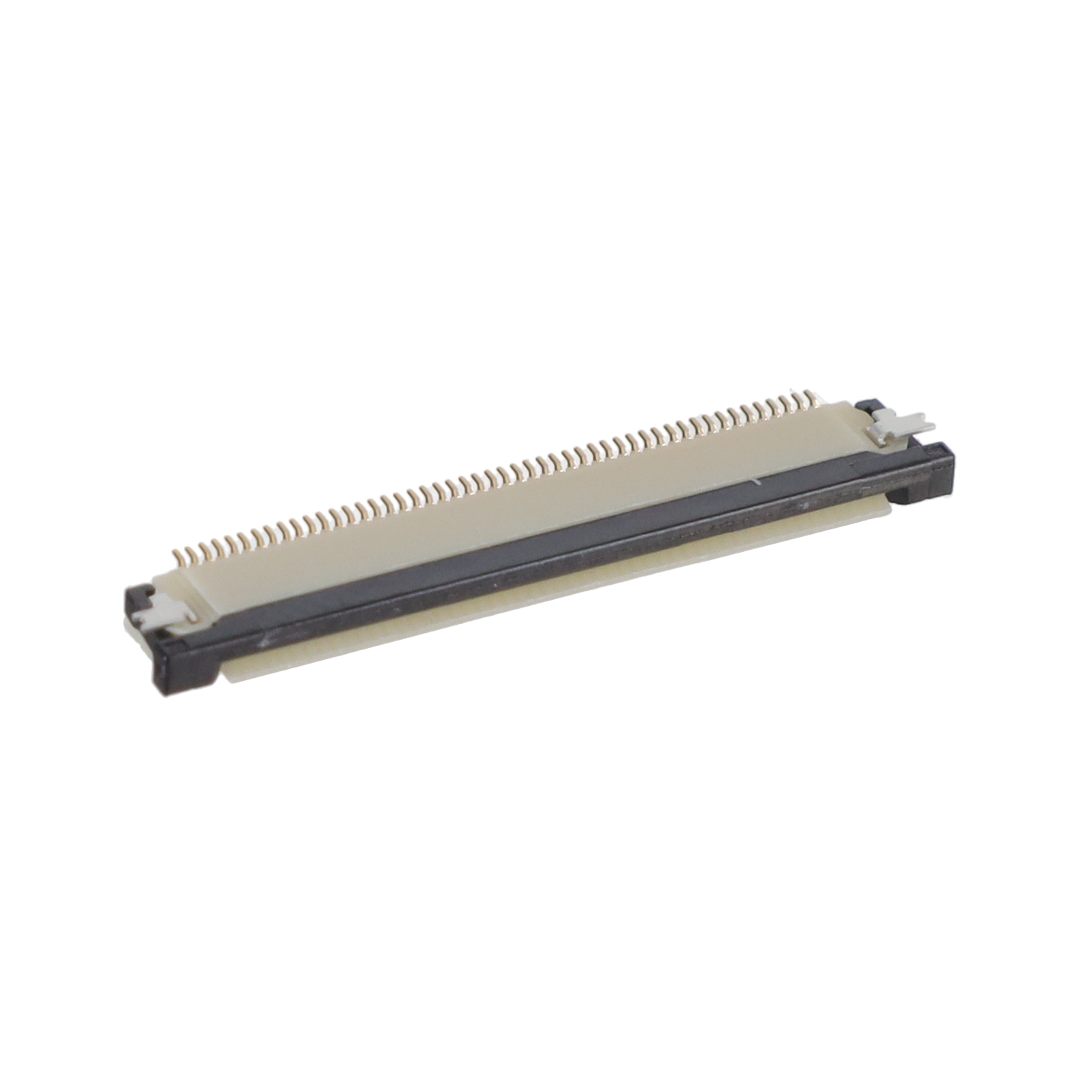

62684-502100ALF

62684-502100ALF is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN FPC TOP 50POS 0.5MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 62684-502100ALF

• Description：CONN FPC TOP 50POS 0.5MM R/A
• Series：OPU
• Mfr：Amphenol ICC (FCI)
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Top
• Number of Positions：50
• Pitch：0.020" (0.50mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.079" (2.00mm)
• Locking Feature：Slide Lock
• Cable End Type：Tapered
• Contact Material：Phosphor Bronze
• Contact Finish：Gold
• Housing Material：Polyamide (PA9T), Nylon 9T, Glass Filled
• Actuator Material：Thermoplastic, Glass Filled
• Features：Zero Insertion Force (ZIF)
• Voltage Rating：50V
• Operating Temperature：-55°C ~ 85°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 62684-502100ALF
