67997-804HLF

Headers, Male Pins Overview

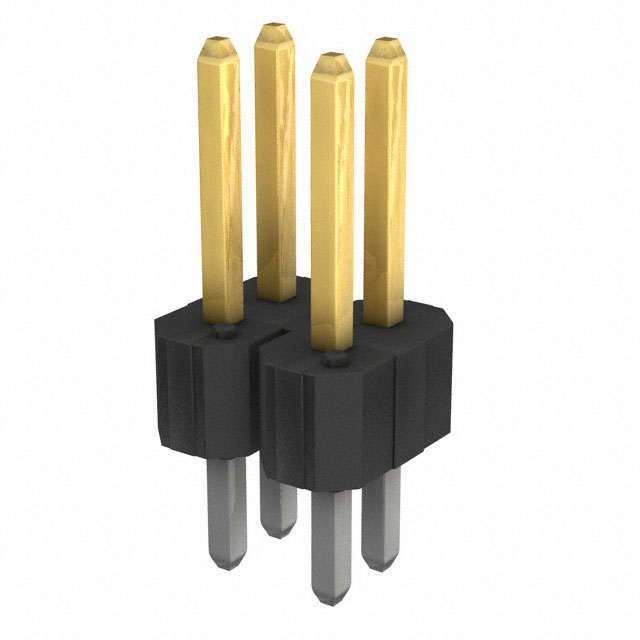

The Amphenol ICC (FCI) 67997-804HLF is a BergStik II series board-to-board header connector. It features a 2-row, 4-position configuration with a 2.54 mm pitch. Designed for through-hole vertical mounting, the male pins are constructed from phosphor bronze and finished with gold over nickel plating. The housing is black thermoplastic rated UL 94 V-0. This component supports a maximum operating temperature of 130°C.

Headers, Male Pins Feature Summary

• Dual-row pin strip design for high-density interconnects
• Gold-plated phosphor bronze contacts ensure reliable conductivity
• Vertical through-hole termination for secure PCB mounting

Headers, Male Pins Applications

• Board-to-board signal transmission
• Industrial control system interconnections
• General-purpose electronic circuit modules

Headers, Male Pins Procurement Notes

Verify the specific contact finish against official datasheets, as generic listings may vary between tin and gold options. Confirm RoHS compliance status directly with the manufacturer documentation. Ensure the ordering suffix matches the required plating specification to avoid functional mismatches in critical applications.

Headers, Male Pins Selection Notes

Select this model for standard 2.54 mm pitch requirements where vertical orientation is necessary. Verify that the 4-position count aligns with the target circuit design. Consider the gold plating option if superior corrosion resistance and low contact impedance are required for the specific operational environment.

Headers, Male Pins Part Context

This component belongs to the BergStik II family of unshrouded headers. The series provides standardized spacing for various position counts. The 67997-804HLF represents a specific variant within this lineup, offering a compact footprint suitable for dense board layouts while maintaining robust mechanical stability.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 2x4, 2.54 mm pitch headers from the same BergStik II series, such as the 67997-404HLF or 67997-204HLF, provided they share identical pin configurations and mounting styles.
