68000-116

Headers, Male Pins Overview

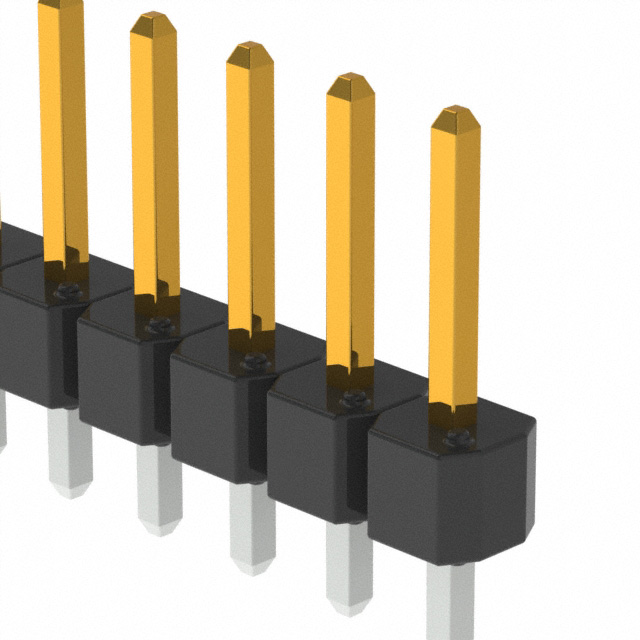

The Amphenol ICC (FCI) 68000-116 is a BergStik II series header connector featuring 16 positions with a 2.54 mm pitch. It utilizes straight, unshrouded male pin contacts made of phosphor bronze with gold plating. Designed for through-hole solder termination, the component supports a current rating of 3 A per contact and a voltage rating of 1.5 kV. The black thermoplastic housing ensures UL94 V-0 flammability compliance. Electrical specifications include an insulation resistance of 5 GOhms. Operating temperatures range from -65°C to 125°C.

Headers, Male Pins Feature Summary

• Provides reliable electrical interconnection via gold-plated male pins in an unshrouded configuration.
• Engineered for high signal integrity and durability under thermal stress and vibration.
• Features a low-profile design optimized for efficient system heat dissipation.

Headers, Male Pins Applications

• Data processing equipment
• Communication systems
• Consumer electronics

Headers, Male Pins Procurement Notes

Verify part authenticity by checking manufacturer markings against official datasheets. Confirm that the specific suffix matches the required contact length and termination style. Ensure storage conditions maintain moisture sensitivity levels as defined in the package information. Request material certificates if RoHS compliance or specific halogen-free requirements are mandatory for your assembly process.

Headers, Male Pins Selection Notes

Select this component when a 16-position vertical header is required for board-to-board or cable connections. Verify that the 2.54 mm spacing aligns with PCB layout constraints. Consider the 3 A current rating for power distribution needs. Ensure the unshrouded design fits within the mechanical envelope without interference from adjacent components.

Headers, Male Pins Part Context

This connector belongs to the BergStik II family, a widely used line of headers known for cost-effective connectivity solutions. Amphenol acquired FCI in 2016, integrating these products into their broader portfolio. The series is characterized by its robust construction and suitability for high-volume manufacturing environments across various electronic sectors.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other 16-position, 2.54 mm pitch headers from the same manufacturer. Verify compatibility regarding contact length, post height, and housing color before integration.
