69192-430HLF

Headers, Male Pins Overview

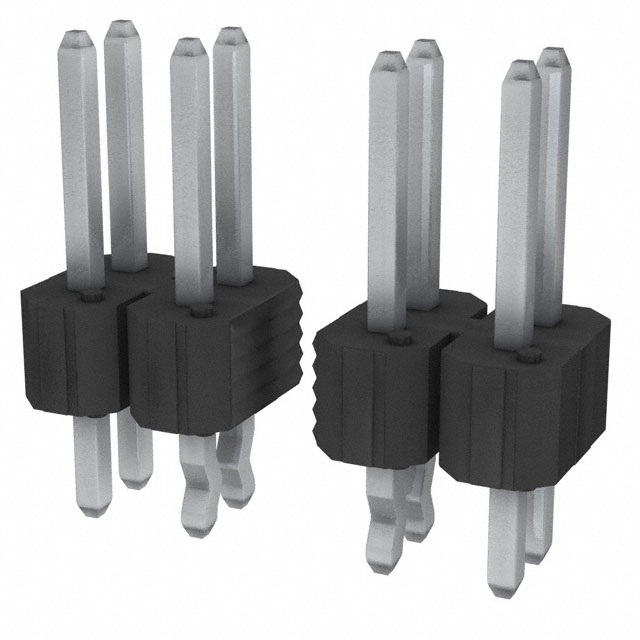

The Amphenol ICC (FCI) 69192-430HLF is a vertical, unshrouded header connector from the BERGSTIK II series. It features 30 positions with a 2.54 mm pitch and two rows of male pin contacts. The housing is black thermoplastic rated UL94 V-0. Contacts are phosphor bronze with tin plating. Rated current is 3 A; voltage rating is 1.5 kV. Insulation resistance is 5 GOhms. Mating contact length is 5.84 mm; termination leg length is 3.05 mm.

Headers, Male Pins Feature Summary

• Vertical board-to-board mounting configuration
• Unshrouded design for compact integration
• Tin-plated phosphor bronze contacts for conductivity

Headers, Male Pins Applications

• Server backplane interconnects
• Storage system circuit boards
• Communication network equipment

Headers, Male Pins Procurement Notes

Verify RoHS compliance status as indicated by the HLF suffix. Confirm that the 30-position variant matches the specific PCB footprint requirements. Check for end-of-life notifications or obsolescence warnings prior to finalizing procurement plans.

Headers, Male Pins Selection Notes

Select this component when a high-density, vertical header is required for signal routing. Ensure the PCB layout accommodates the 2.54 mm spacing and dual-row arrangement. Verify mechanical clearance above the board for mating connectors.

Headers, Male Pins Part Context

This part belongs to the BERGSTIK II family, a standard line of through-hole headers widely used in industrial and commercial electronics. The 69192 prefix denotes the specific housing geometry and row configuration within the broader product catalog.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other 30-position, 2.54mm pitch, dual-row headers only if mechanical and electrical specifications match exactly.
