7010X3

LED Indication - Discrete Overview

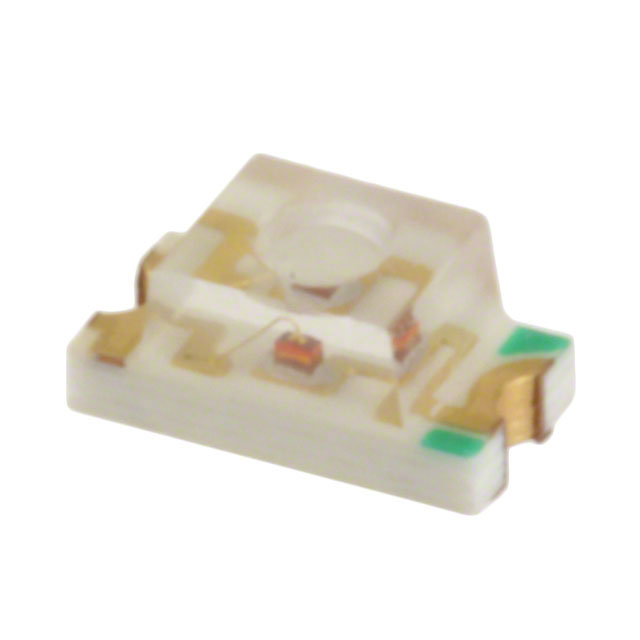

The VCC 7010X3 is a discontinued single-color orange light-emitting diode designed for surface-mount technology applications. It utilizes a rectangular lens with water-clear transparency to optimize light emission characteristics. The component operates at a peak wavelength of 605 nm and provides an optical intensity of 9 mcd under standard test conditions. Electrical parameters include a forward voltage of 2.2 V and a forward current rating of 20 mA, resulting in a power dissipation of 75 mW. The device is housed in a compact 1206 (3216 metric) package, suitable for automated assembly processes.

LED Indication - Discrete Feature Summary

• Orange LED emission with water-clear rectangular lens
• Surface-mount 1206 package configuration
• Standard electrical operation parameters

LED Indication - Discrete Applications

• Panel indicator lighting
• Status indication circuits
• Electronic equipment signaling

LED Indication - Discrete Procurement Notes

This component is officially listed as obsolete and no longer manufactured by Visual Communications Company. Verification of availability should focus on surplus distributors or secondary market channels rather than direct manufacturer supply. Buyers must confirm the authenticity and storage history of existing stock due to the part's end-of-life status. Cross-referencing with active replacement parts is recommended for new designs.

LED Indication - Discrete Selection Notes

Designers should consider the discontinuation status when selecting this component for long-term production. The specific orange color and 1206 form factor may require substitution with equivalent active parts from other manufacturers. Evaluation of alternative LEDs with similar wavelength and package dimensions is necessary to ensure compatibility with existing board layouts and optical requirements.

LED Indication - Discrete Part Context

The 7010X3 belongs to the VCC discrete LED product line, specifically within the single-color surface-mount category. It represents a standard offering for general-purpose indication tasks before its retirement from the active portfolio. The part shares packaging standards common to the 1206 family, facilitating integration into various consumer and industrial electronic devices.

LED Indication - Discrete Replacement Considerations

• SML-LX1206SIC-TR
