7010X5

Overview

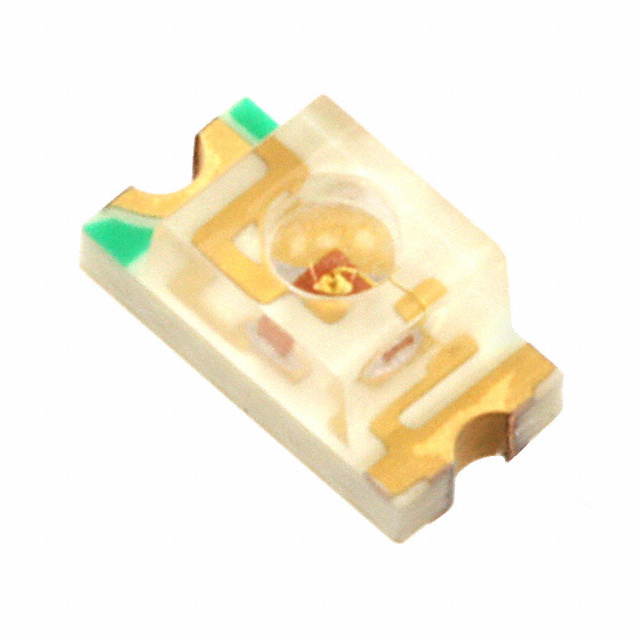

The 7010X5 is a surface-mount green LED from Visual Communications Company, designed for general-purpose indication. It utilizes a 1206 (3216 Metric) package with dimensions of 3.00mm L x 1.50mm W. The device features a clear lens and a standard configuration. Electrical characteristics include a forward voltage of 2.0V and a test current of 20mA. The component offers a viewing angle of 60 degrees. This product is currently obsolete and no longer manufactured.

Feature Summary

• Compact SMD form factor suitable for space-constrained designs
• Clear lens configuration for optimal light transmission
• Standard single-color green emission

Applications

• General-purpose electronic indication
• Panel status signaling
• Interface illumination

Procurement Notes

Verify the obsolete status before procurement planning. Confirm availability through secondary market distributors or authorized surplus channels. Ensure compatibility with existing PCB layouts due to the fixed 1206 footprint. Check for potential tariff implications if shipping to the United States. Validate that the green color specification meets design requirements.

Selection Notes

Select this component only if the 1206 package size aligns with the board design. Consider the 2.0V forward voltage drop for circuit power calculations. Note the 60-degree viewing angle for visibility requirements. Since the part is obsolete, evaluate alternative VCC green LEDs in similar packages for long-term supply stability.

Part Context

This component belongs to VCC's discrete LED indicator line. It represents a standard surface-mount technology solution for visual signaling. The manufacturer specializes in various indicator technologies including LEDs, incandescent, and neon options for industrial and commercial applications.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Due to the obsolete status, direct replacements should be sourced from distributor cross-reference lists or equivalent green SMD LEDs with matching 1206 dimensions and electrical parameters.
