74437324056

$1.79

Description：FIXED IND 5.6UH 2A 0.125OHM SMD
Series：WE-LHMI
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:10b6d1b74d8b Category: Fixed Inductors Brand: Würth Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

74437324056 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is FIXED IND 5.6UH 2A 0.125OHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for 74437324056

Description：FIXED IND 5.6UH 2A 0.125OHM SMD
Series：WE-LHMI
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Molded
Material - Core：Iron Powder
Inductance：5.6 µH
Tolerance：±20%
Current Rating (Amps)：2:00 AM
Current - Saturation (Isat)：5.1A
Shielding：Shielded
DC Resistance (DCR)：125mOhm Max
Q @ Freq：-
Frequency - Self Resonant：30MHz
Ratings：-
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：2-SMD
Supplier Device Package：-
Size / Dimension：0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max)：0.079" (2.00mm)
Features：-

Fixed Inductors datasheet and documents for 74437324056

74437324056

Fixed Inductors Overview

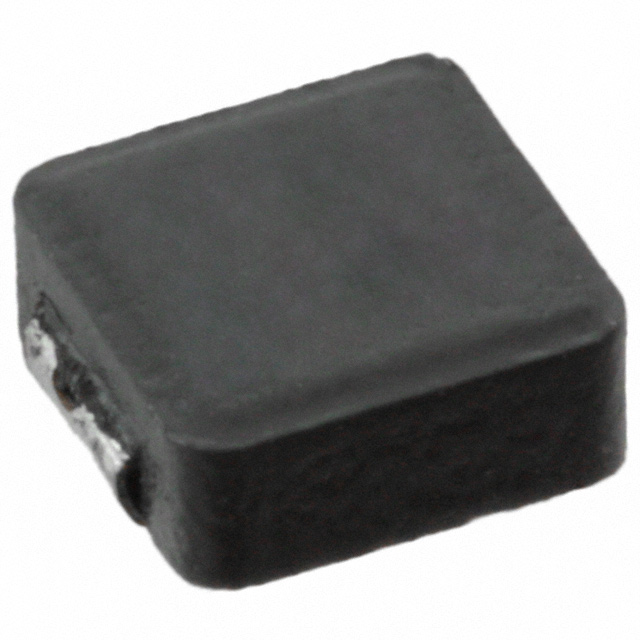

The Würth Elektronik 74437324056 is a shielded surface-mount power inductor from the WE-LHMI series. It features an inductance of 5.6 µH with a tolerance of ±20%. The component has a maximum DC resistance (DCR) of 125 mΩ and a rated current of 2 A. It utilizes iron powder core material and is packaged in a bulk configuration. The device is designed for high saturation current applications and complies with AEC-Q200 automotive standards.

Fixed Inductors Feature Summary

Shielded molded construction for reduced electromagnetic interference
High saturation current capability within a compact SMD footprint
Automotive-grade reliability certified under AEC-Q200 standards

Fixed Inductors Applications

Automotive power supply circuits
Point-of-load conversion stages
General-purpose DC-DC converter filtering

Fixed Inductors Procurement Notes

Verify the specific ordering suffix to confirm package type and tape/reel specifications, as variations may exist within the WE-LHMI family. Ensure that the selected variant matches the required current ratings and thermal performance for the target application environment. Cross-reference the manufacturer's latest datasheet to confirm compliance with RoHS directives and availability status before finalizing procurement plans.

Fixed Inductors Selection Notes

Select this component when a shielded inductor with moderate current handling is required for space-constrained designs. The WE-LHMI series offers a balance between size and performance suitable for automotive and industrial power electronics. Consider the DCR and saturation characteristics to ensure efficiency targets are met without exceeding thermal limits in the final assembly.

Fixed Inductors Part Context

This part belongs to the WE-LHMI series of SMD power inductors from Würth Elektronik. The series is characterized by its low profile and high performance, making it suitable for applications where board space is limited but high current handling is necessary. The WE-LHMI line complements other Wurth inductor families by focusing on robust shielding and automotive qualification.
