745-062-525-106

Edgeboard Connectors Overview

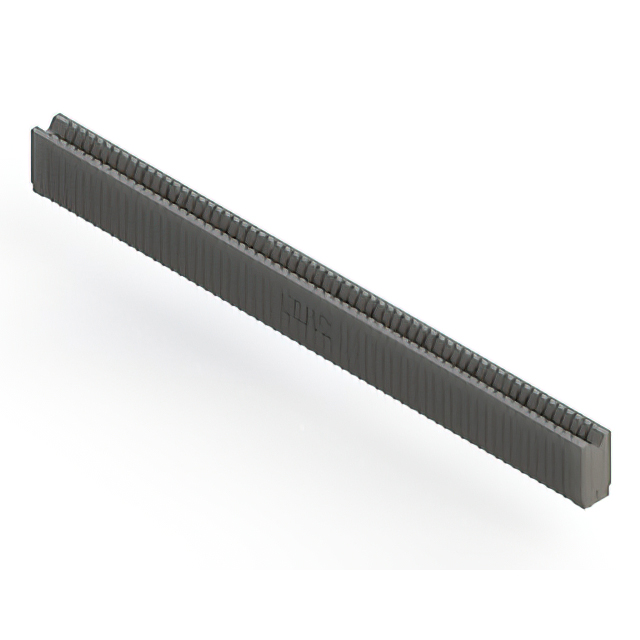

The EDAC Inc. 745-062-525-106 is a single-row card edge connector featuring 62 positions with a 0.100-inch (2.54mm) contact spacing. Designed for press-fit termination, it utilizes copper alloy contacts with gold plating to ensure reliable signal transmission. The component accommodates board thicknesses ranging from 0.062 to 0.093 inches and operates within a temperature range of -40°C to +105°C. Constructed with a black thermoplastic polyester insulator, this receptacle provides secure vertical mounting for standard single-edge circuit boards in electronic assemblies.

Edgeboard Connectors Feature Summary

• Press-fit termination method for direct PCB insertion without soldering
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Thermoplastic polyester insulator housing for thermal stability
• Single-row configuration optimized for standard card edge applications

Edgeboard Connectors Applications

• Vertical panel mount interconnects
• Standard single-edge circuit board connections
• Electronic assembly signal routing

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current 745 Series guide to confirm exact tail length and insulator color specifications. Ensure compatibility with the target printed circuit board thickness limits defined in the official datasheet. Confirm RoHS compliance status and moisture sensitivity level requirements prior to final procurement approval.

Edgeboard Connectors Selection Notes

Select this component when a press-fit installation is required for single-row card edge interfaces. The 0.100-inch pitch suits general-purpose digital and analog signal lines. Verify that the application environment remains within the specified operating temperature range and that the mechanical stress on the connector tails does not exceed the press-fit design limits.

Edgeboard Connectors Part Context

This part belongs to the EDAC 745 Series, which specializes in press-fit card edge connectors. The series offers various position counts and tail configurations to support diverse vertical mounting needs. It serves as a robust alternative to soldered connectors in high-vibration environments where mechanical retention is critical.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 745 Series variants such as 745-062-525-206 for dual-row options or different tail lengths. Ensure any substitute maintains the same 0.100-inch pitch and press-fit termination style to preserve mechanical and electrical interface integrity.
