74LVC1G10GN,132

Inverter Gates Overview

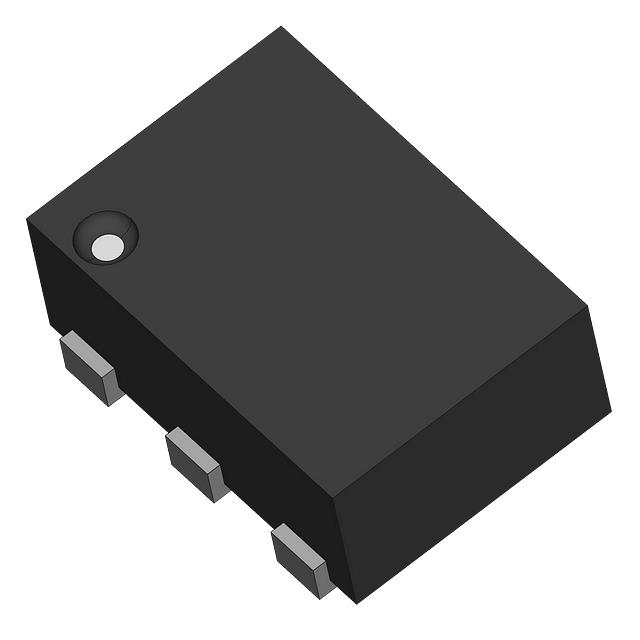

The 74LVC1G10GN,132 is a single 3-input NAND gate manufactured by Nexperia USA Inc. It operates within a supply voltage range of 1.65 V to 5.5 V and supports output currents of 32 mA for both high and low states. The device features a propagation delay of 21.5 ns and functions reliably across an operating temperature range of -40°C to +125°C. It is housed in a compact XSON-6 (SOT1115) surface-mount package.

Inverter Gates Feature Summary

• Provides single 3-input NAND logic functionality
• Features overvoltage tolerant inputs compatible with 3.3 V and 5 V systems
• Includes I_OFF circuitry to prevent damaging backflow current during partial power-down

Inverter Gates Applications

• Mixed 3.3 V and 5 V digital environments
• General-purpose logic applications requiring 3-input NAND gates
• Partial power-down mode operations

Inverter Gates Procurement Notes

Verify the specific suffix GN corresponds to the XSON-6 package when sourcing. Confirm RoHS compliance status as per the latest manufacturer documentation. Ensure the ordering quantity aligns with standard factory packaging requirements. Cross-reference the 12NC code for accurate inventory management.

Inverter Gates Selection Notes

Select this component for designs requiring a single 3-input NAND gate in a small footprint. It is suitable for mixed-voltage interfaces due to input tolerance. Consider the XSON-6 package for space-constrained PCB layouts. Verify thermal performance within the specified -40°C to +125°C range.

Inverter Gates Part Context

This part belongs to the 74LVC family of low-voltage CMOS logic devices. It is designed for applications requiring wide supply voltage ranges and high noise immunity. The series is compliant with JEDEC standards for various voltage levels, ensuring compatibility with modern digital systems.

Inverter Gates Replacement Considerations

Check for direct pin-compatible alternatives within the same logic family. Verify that any substitute maintains the 3-input NAND function and similar electrical characteristics. Ensure the replacement package matches the XSON-6 form factor.
