75844-379-26

Headers, Male Pins Overview

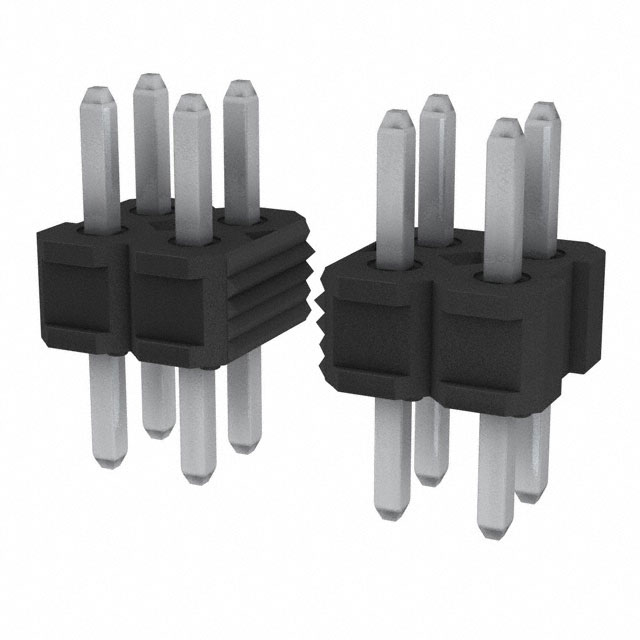

The Amphenol ICC (FCI) 75844-379-26 is a vertical header connector from the BERGSTIK® series. It features 26 positions with a 0.100" (2.54mm) pitch in a double-row configuration. The connector utilizes square male pin contacts made of phosphor bronze, terminated via solder through-hole mounting. It operates within a temperature range of -65°C to 130°C and carries UL94 V-0 flammability ratings for its thermoplastic insulation.

Headers, Male Pins Feature Summary

• Vertical board-to-board interconnection design
• Push-pull fastening mechanism for secure mating
• Unshrouded double-row header structure

Headers, Male Pins Applications

• Board-to-board connections
• General electronic equipment interconnects

Headers, Male Pins Procurement Notes

This component is officially obsolete and no longer manufactured by Amphenol ICC (FCI). Verification of current availability requires checking distributor stock or identifying approved replacement part numbers. Sourcing should focus on legacy inventory or direct substitutes to ensure compatibility and supply chain stability.

Headers, Male Pins Selection Notes

Select this connector for applications requiring vertical, unshrouded headers with push-pull retention. Ensure the mating system supports the 2.54mm pitch and double-row layout. Verify that the operating environment falls within the specified thermal limits and that the through-hole soldering process aligns with manufacturing capabilities.

Headers, Male Pins Part Context

Part of the BERGSTIK® family, designed for high-density vertical interconnections. The 75844 series provides reliable signal transmission in compact spaces. This specific model represents a standard 26-position variant within the broader product line.

Headers, Male Pins Replacement Considerations

As an obsolete part, verify compatible replacements such as other 26-position vertical headers with matching pitch and contact configuration. Cross-reference mechanical dimensions and electrical ratings to ensure functional equivalence.
