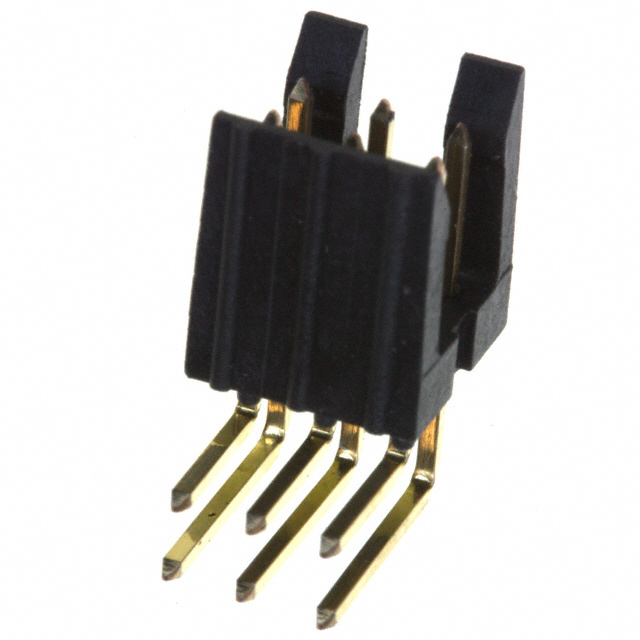

78207-106HLF

78207-106HLF is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN HEADER R/A 6POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 78207-106HLF

• Description：CONN HEADER R/A 6POS 2.54MM
• Series：Mini-PV™, Basics+
• Mfr：Amphenol ICC (FCI)
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：6
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 2 Wall
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Friction Lock
• Contact Length - Mating：0.230" (5.84mm)
• Contact Length - Post：0.120" (3.05mm)
• Overall Contact Length：-
• Insulation Height：0.303" (7.70mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold or Gold, GXT™
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Contact Finish - Post：-
• Contact Material：Phosphor Bronze
• Insulation Material：-
• Features：Keying Slot
• Operating Temperature：-
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：-
• Voltage Rating：-

Headers, Male Pins datasheet and documents for 78207-106HLF
